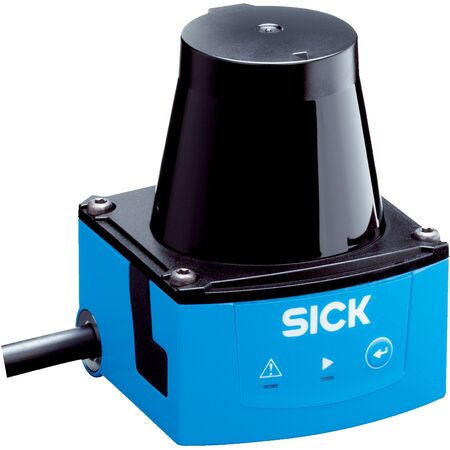

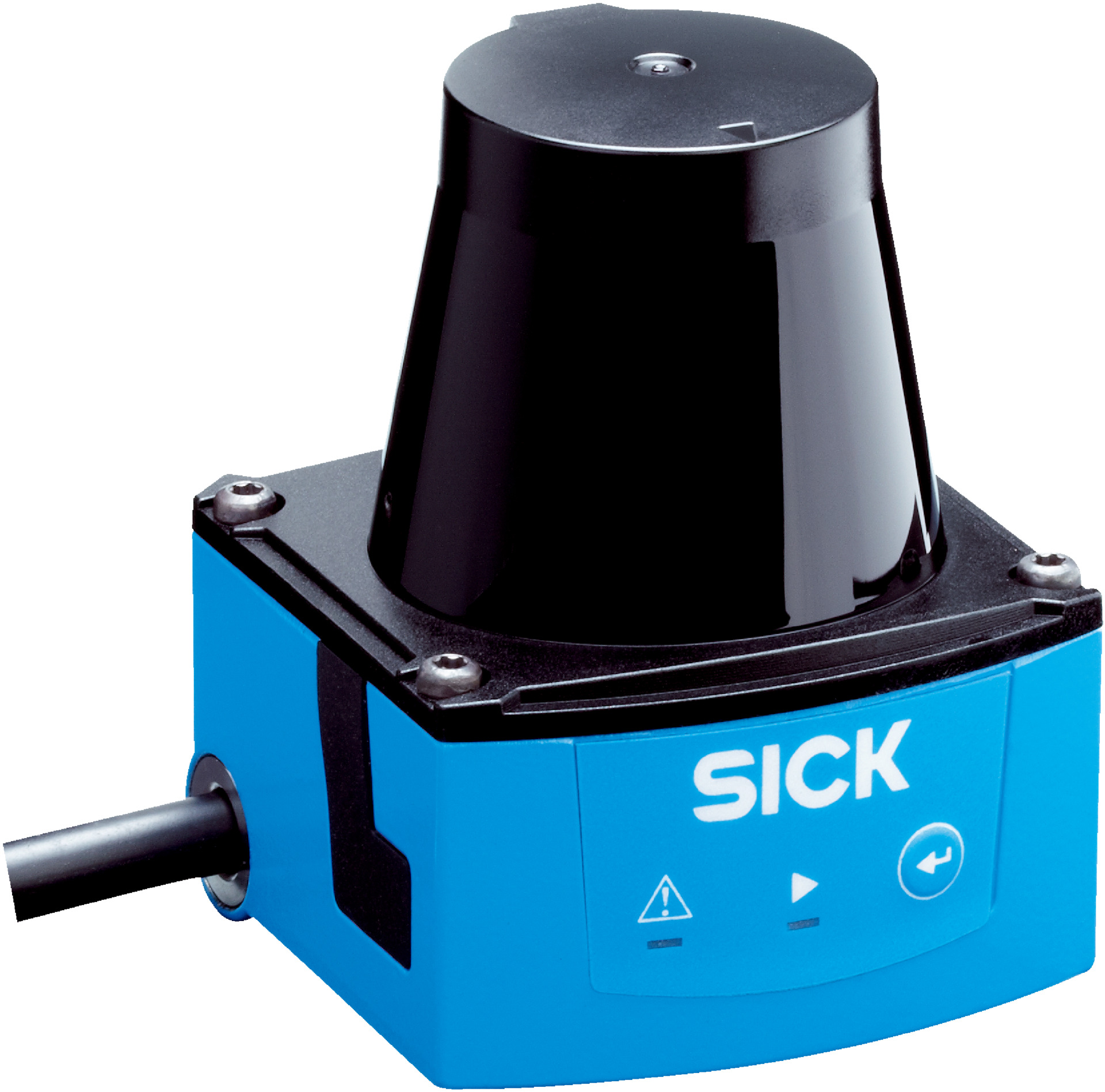

SICK TIM320 Infrared Laser Scanner | HDDM+ Measurement | IP65 Rated | 270° Aperture Angle | by SICK
The SICK TIM320 Infrared Laser Scanner is designed for precise indoor object detection and measurement, utilizing HDDM+ technology with an infrared light source. With a 270° horizontal aperture angle and IP65 enclosure rating, it’s perfect for industrial automation applications, ensuring reliable performance in challenging environments. Its compact design and low power consumption make it an efficient choice for various automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 1° horizontal
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Response time: 1 scan typically 67 ms
- Digital inputs: 4
- Digital outputs: 3 NPN plus 1 device ready
- Delay time configurable from 67 ms to 30,000 ms
- Dwell time configurable from 67 ms to 600,052 ms
- Operating temperature: -10°C to +50°C
- Storage temperature: -30°C to +70°C
- Shock resistance: up to 50 g
- Vibration resistance: 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 270° horizontal aperture angle with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 4 m
- IP65 rated enclosure for dust and water protection
- Light blue housing (RAL 5012) with compact dimensions
- Multiple digital inputs and outputs with configurable delay and dwell times
- Micro USB interface for service and parameterization
- High vibration and shock resistance for industrial environments
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Indoor object detection and measurement
- Field evaluation and automation systems
- Industrial automation requiring precise scanning
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable design with long MTBF (>100 years) minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TIM320-0131000S02 Indoor Infrared Laser Scanner is available for immediate purchase, ideal for industrial indoor automation and object detection applications.
