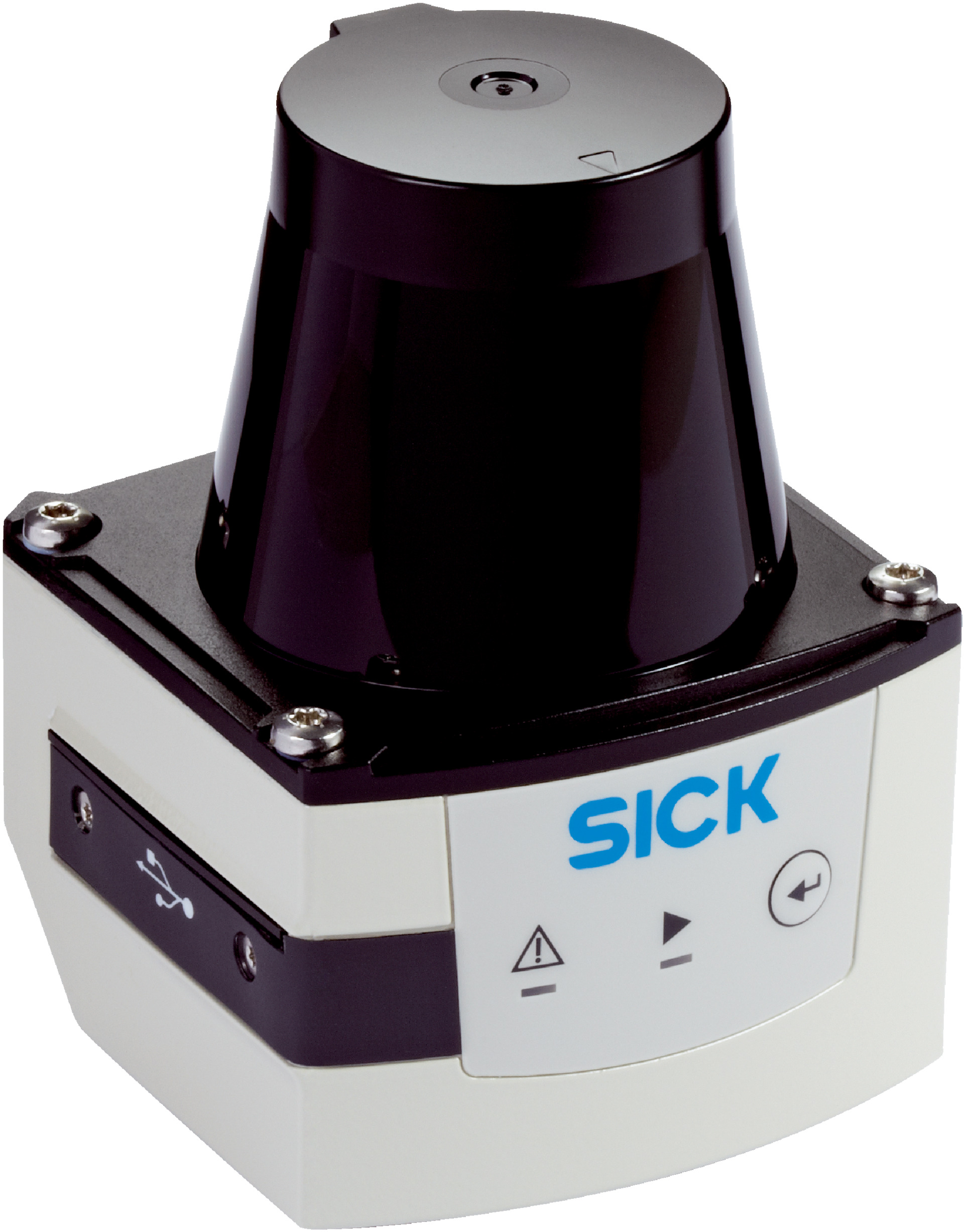

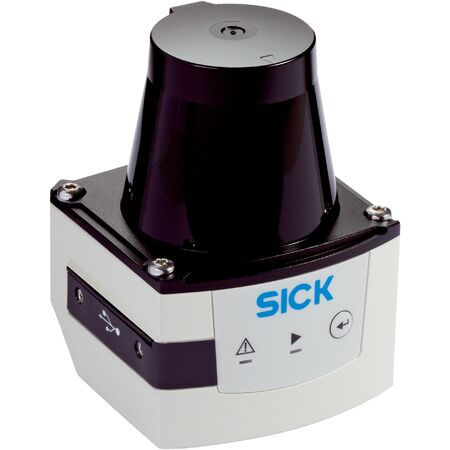

SICK TIM351 Laser Sensor | HDDM+ Measurement | IP67 Rated | 270° Aperture Angle | by SICK
The SICK TIM351 Laser Sensor features advanced HDDM+ measurement technology with an infrared light source, making it ideal for precise object detection and measurement in both indoor and outdoor environments. With a robust IP67 rated housing, it withstands harsh conditions while offering a wide horizontal aperture angle of 270° and a scanning frequency of 15 Hz. Perfect for industrial automation and safety monitoring, this sensor ensures reliable performance across various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1 x Ethernet (4-pin M12 female), 1 x Power (12-pin M12 male), 1 x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: Typically 67 ms per scan
- Digital inputs: 4
- Digital outputs: 3 PNP plus 1 Device Ready
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Shock resistance: Up to 50 g
- Vibration resistance: 10 Hz to 1000 Hz
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- Robust IP67 rated housing suitable for harsh environments
- Multiple interfaces including Ethernet, Micro USB, and digital I/O
- Configurable delay and dwell times for flexible operation
- High vibration and shock resistance for industrial use
- Ambient operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety monitoring
- Field evaluation and contour detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TIM351-2134001 sensor is available for immediate purchase, ideal for industrial automation and safety applications.
