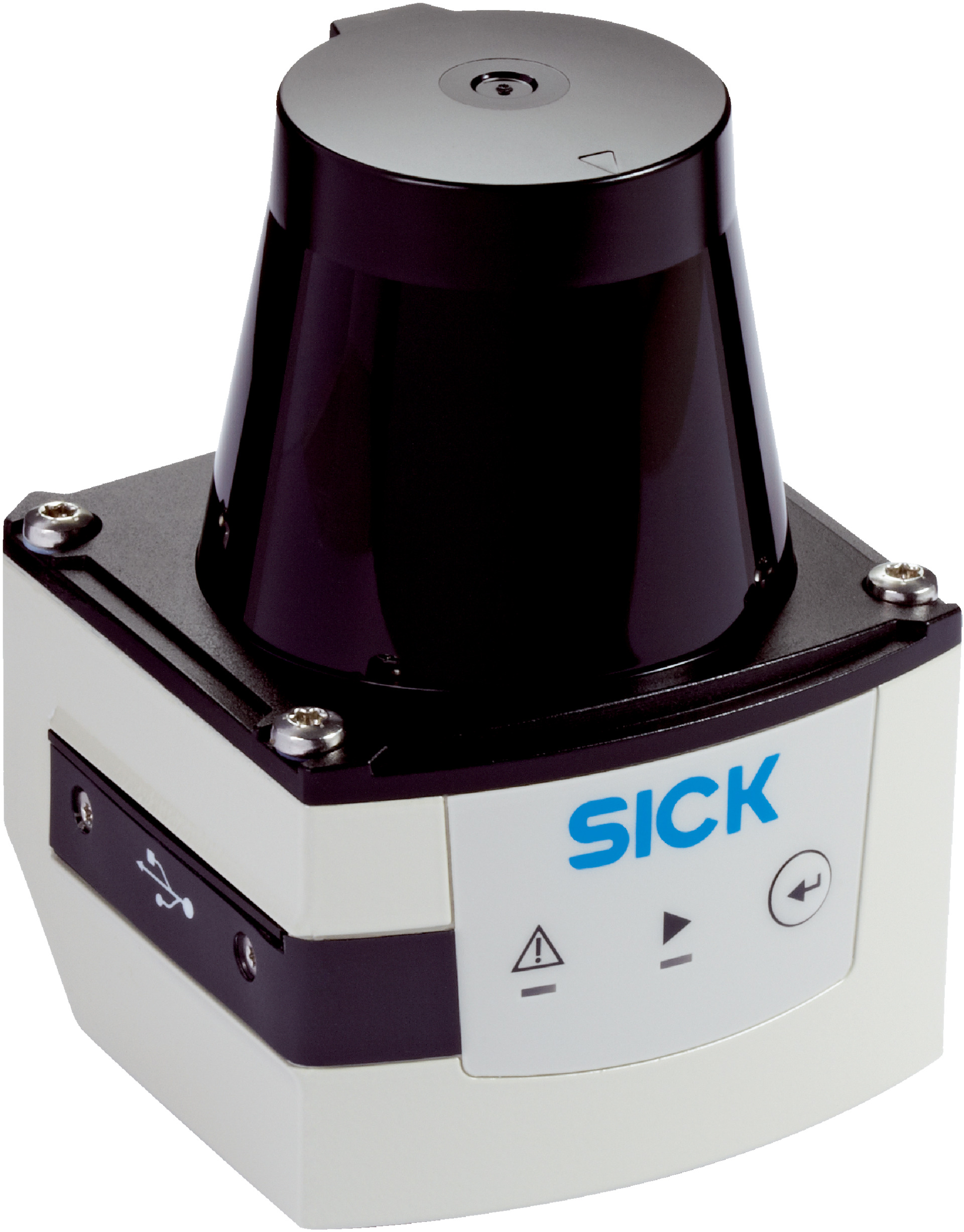

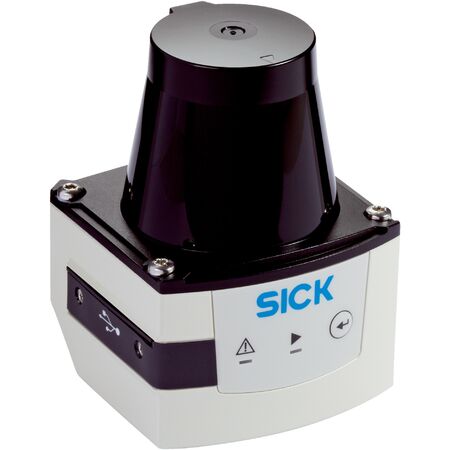

SICK TiM571 Laser Scanner | IP67 Rated | 270° Horizontal Aperture | 15 Hz Scanning Frequency | by SICK
The SICK TiM571 Laser Scanner is designed for precise distance measurement in both indoor and outdoor environments. With a robust IP67 rated housing, it offers high vibration and shock resistance, making it ideal for industrial automation and safety monitoring. Featuring a wide horizontal aperture angle of 270° and a scanning frequency of 15 Hz, this sensor ensures accurate object detection and scanning across various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Ethernet RJ45, Power/Synchronization output cable, Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 when auxiliary interface cover is closed
- Protection class: III (IEC 61140:2016-1)
- Response time: Typical 67 ms per scan
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Object remission range: 4% to 1000% (reflectors)
- Electromagnetic compatibility: Residential and industrial standards compliant
- Vibration resistance: 10 Hz to 1000 Hz sine resonance scan
- Shock resistance: Up to 50 g
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- HDDM measurement principle with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz and working range from 0.05 m to 25 m
- Robust IP67 rated housing for protection against dust and water
- Low power consumption of approximately 4 W
- Multiple interfaces including Ethernet (TCP/IP), Micro USB for service and parameterization
- High vibration and shock resistance suitable for industrial environments
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environments requiring precise distance measurement
- Industrial automation and safety monitoring
- Object detection and scanning in various industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product lifespan reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TiM571-9950101S01 sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
