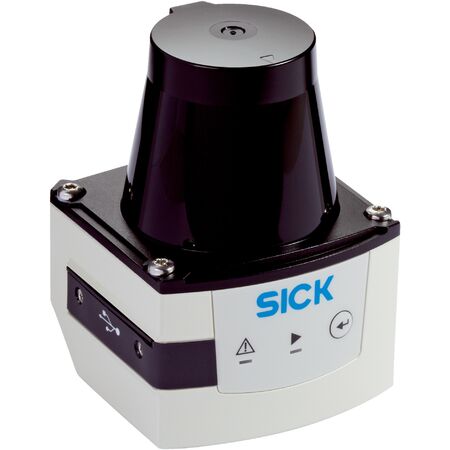

SICK TiM881P Laser Scanner | HDDM+ Measurement | IP67 Rated | 270° Aperture Angle | by SICK
The SICK TiM881P Laser Scanner utilizes HDDM+ measurement technology with an infrared light source, making it perfect for both indoor and outdoor distance measurement and object detection. With a wide horizontal aperture angle of 270° and a robust IP67 rated housing, this sensor is designed for industrial automation and safety monitoring, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 0.33°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 25 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1x Ethernet (4-pin M12 female), 1x Power (12-pin M12 male), 1x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Detectable object shape: Almost any
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Digital inputs: 4 (PNP)
- Digital outputs: 4 (PNP)
- Delay time: 67 ms to 30,000 ms
- Dwell time: 67 ms to 10,000 ms
- Optical indicators: 2 LEDs
- Operator interfaces: Web server, SOPAS ET diagnostics
- Configuration software: SICK AppStudio
- Electromagnetic compatibility: Residential area emission (IEC 61000-6-3), Industrial immunity (IEC 61000-6-2)
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: 50 g, 11 ms single shocks and continuous shocks
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 25 m
- Robust IP67 rated housing for harsh environments
- Multiple interfaces including Ethernet, Micro USB, and digital I/Os
- Programmable integrated application with SICK AppStudio software
- High vibration and shock resistance for industrial use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Outdoor and indoor distance measurement and object detection
- Industrial automation and safety monitoring
- Robotics and logistics systems
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
- Complies with AS/NZS 60950 for safety of IT and communication equipment
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK, typically 1-3 years depending on region and application.
Available Now
The SICK TiM881P-2100101 infrared laser sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
