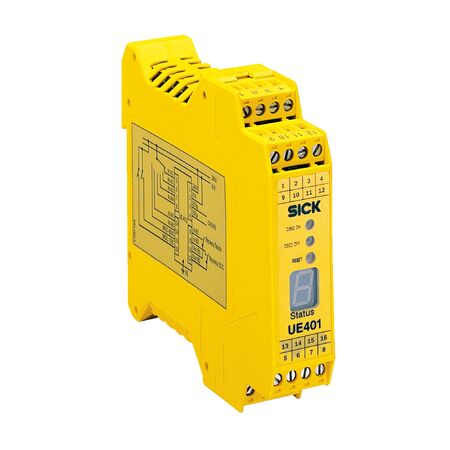

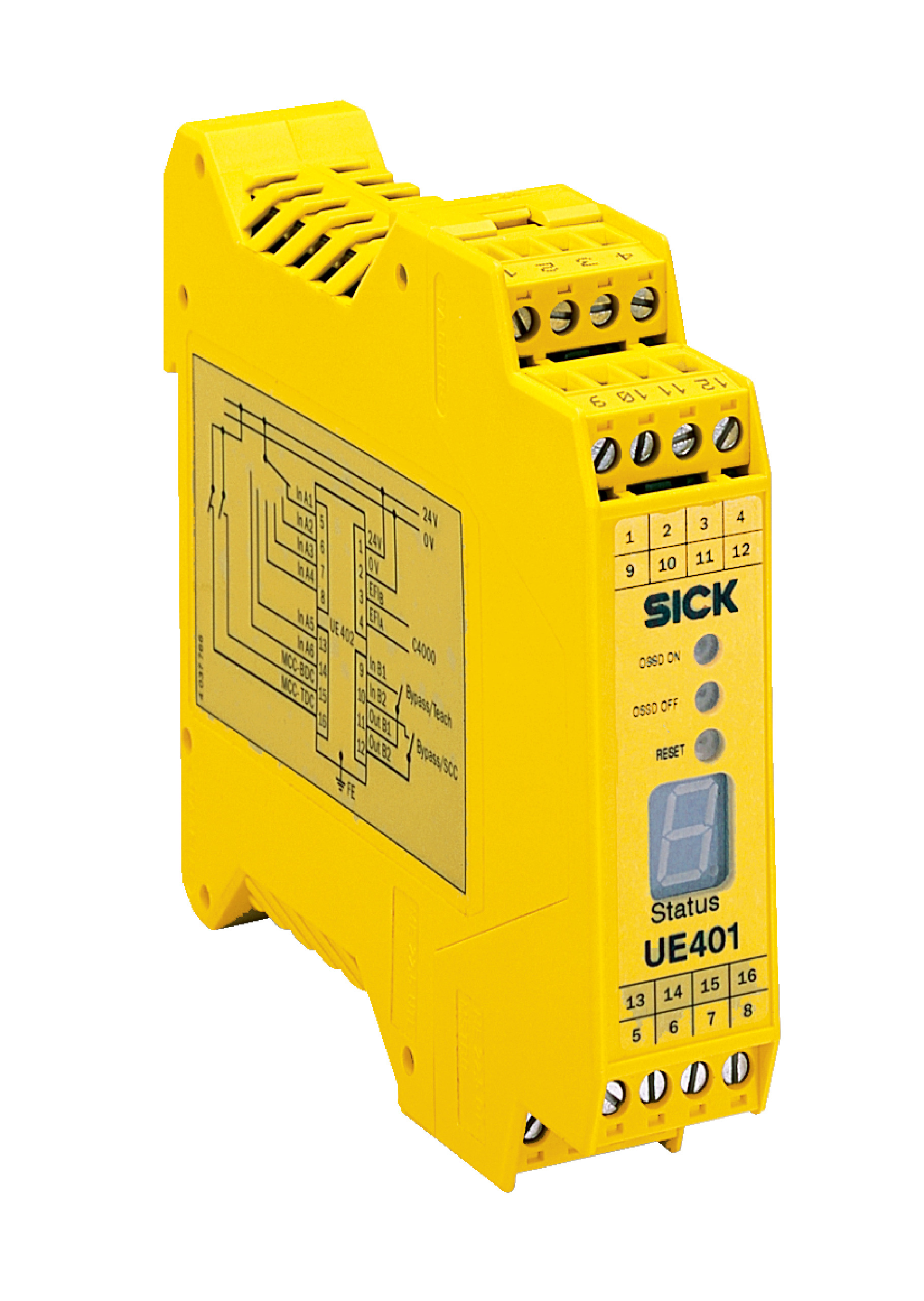

SICK UE401-A0010 Safety Evaluation Unit | Type 4 Safety | SIL 3 Compliance | Diagnostic Display | by SICK
The SICK UE401-A0010 Safety Evaluation Unit is designed for industrial safety monitoring and machine safety evaluation. With a rapid response time of ≤ 30 ms and compatibility with L4000 Systems single-beam photoelectric safety switches, it ensures reliable performance. This unit features a diagnostic 7-segment display and LED status indicators, making it ideal for professionals seeking to enhance safety compliance in their operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Response time: ≤ 30 ms
- Compatible sensor types: L4000 Systems single-beam photoelectric safety switches
- Number of sensor pairs: 1 to 8
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 2.9 x 10^-10 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock: Activated
- External device monitoring: Activated
- Connection type: Plug-in screw-type terminals
- Permitted cable length: ≤ 100 m
- Permitted cross-section: 0.25 mm² to 2.5 mm²
- Configuration method: Hard wired
- Diagnostic display: 7-segment display
- Status display: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 3.6 W
- Switch-on time: ≤ 2.5 s
- Output type: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (17.5 V DC to 28.8 V DC)
- OFF state voltage: ≤ 1.3 V DC
- Current capacity per OSSD: ≤ 0.5 A
- Mounting: Snap-on 35 mm mounting rail (EN 60715)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-29)
- Dimensions (H x L x W): 99mm x 114mm x 23mm
- Weight: 0.16 kg
Key Features
- Compatible with L4000 Systems single-beam photoelectric safety switches
- Supports 1 to 8 sensor pairs (sender and receiver)
- Response time ≤ 30 ms
- Type 4 safety (IEC 61496-1)
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849)
- Performance Level PL e (EN ISO 13849)
- Restart interlock and external device monitoring activated
- Diagnostic 7-segment display and LED status indicators
- Plug-in screw-type terminals with cable length up to 100 m
- Power consumption ≤ 3.6 W
- Short-circuit protected PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety monitoring
- Machine safety evaluation
- Integration with L4000 Systems single-beam photoelectric safety switches
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UE401-A0010 Evaluation Unit is available for immediate purchase, ideal for industrial safety and machine monitoring applications.
