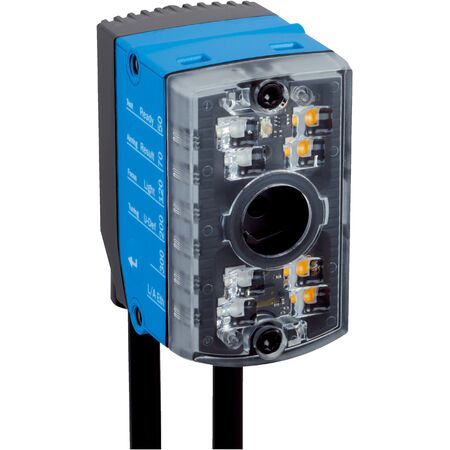

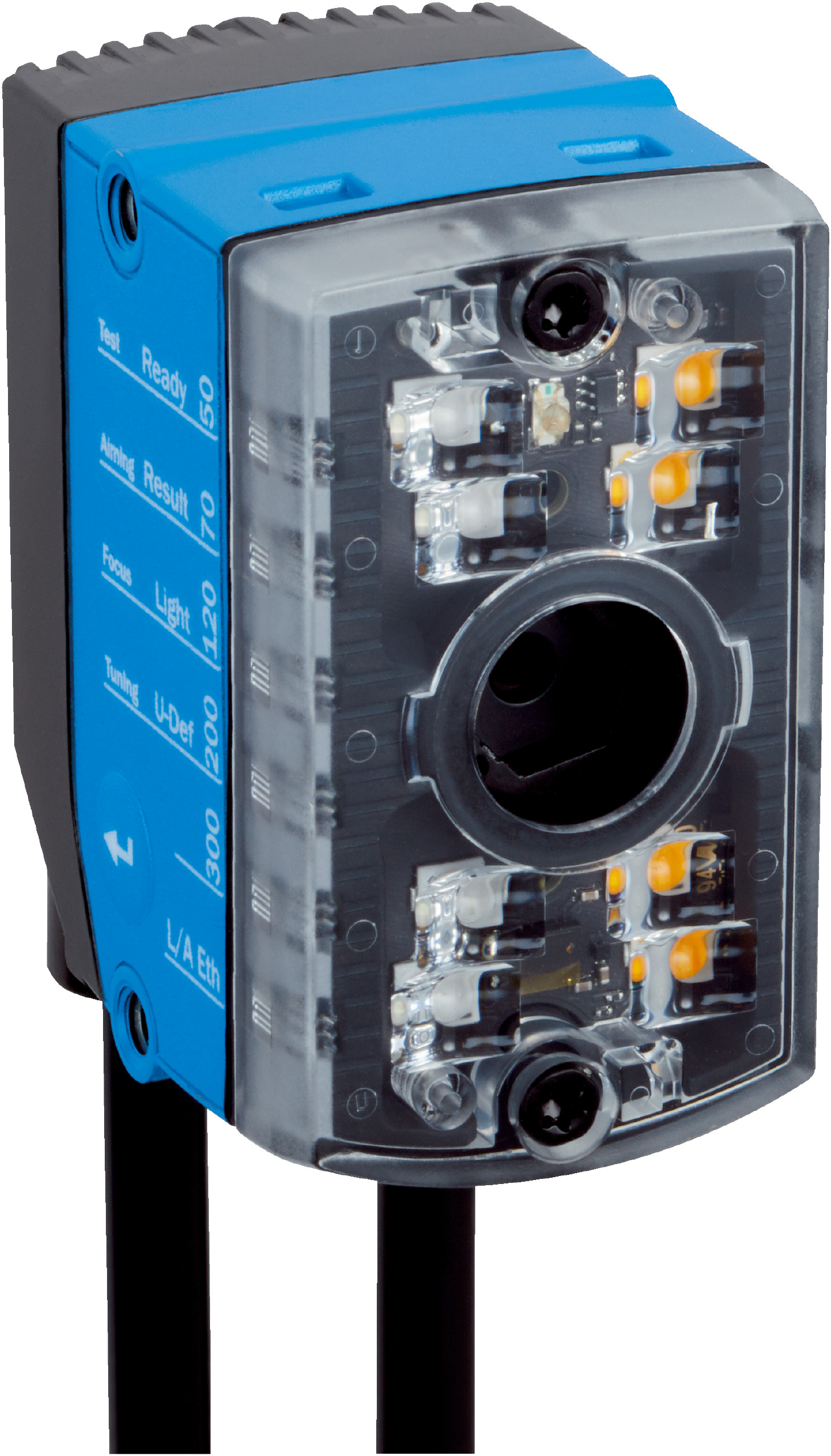

SICK V2D610R-MMSCE4 Barcode Scanner | CMOS Monochrome | 40 Hz Scanning Frequency | IP54 Rated | by SICK
The SICK V2D610R-MMSCE4 barcode scanner features a high-resolution CMOS monochrome sensor with 640 px x 480 px resolution and an impressive scanning frequency of 40 Hz. Ideal for industrial automation and logistics, this scanner reads 1D, 2D, and stacked codes, ensuring efficient package tracking and product identification. With integrated amber and blue LED illumination and an IP54 rated housing, it’s built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1, IEC 60825-1 compliant
- Scanning frequency: 40 Hz
- Code resolution: 0.04 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, color light blue (RAL 5012)
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Operator interface: Web server
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 12 mm focal length lens
- CMOS monochrome sensor with 640 px x 480 px resolution
- Integrated amber and blue LED illumination
- Class 1 laser and LED safety compliant
- Reads 1D, 2D, and stacked codes including GS1-128, QR, Data Matrix ECC200
- High scanning frequency of 40 Hz with code resolution of 0.04 mm
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial RS-232, CAN, and CANopen
- IP54 rated zinc diecast housing with plastic window
- Supports automated parameter switching and image/data storage via FTP
- Equipped with 9 LEDs for status and alignment feedback
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for product identification and quality control
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D610R-MMSCE4 barcode and code reader is available for immediate purchase, ideal for industrial automation and logistics applications.
