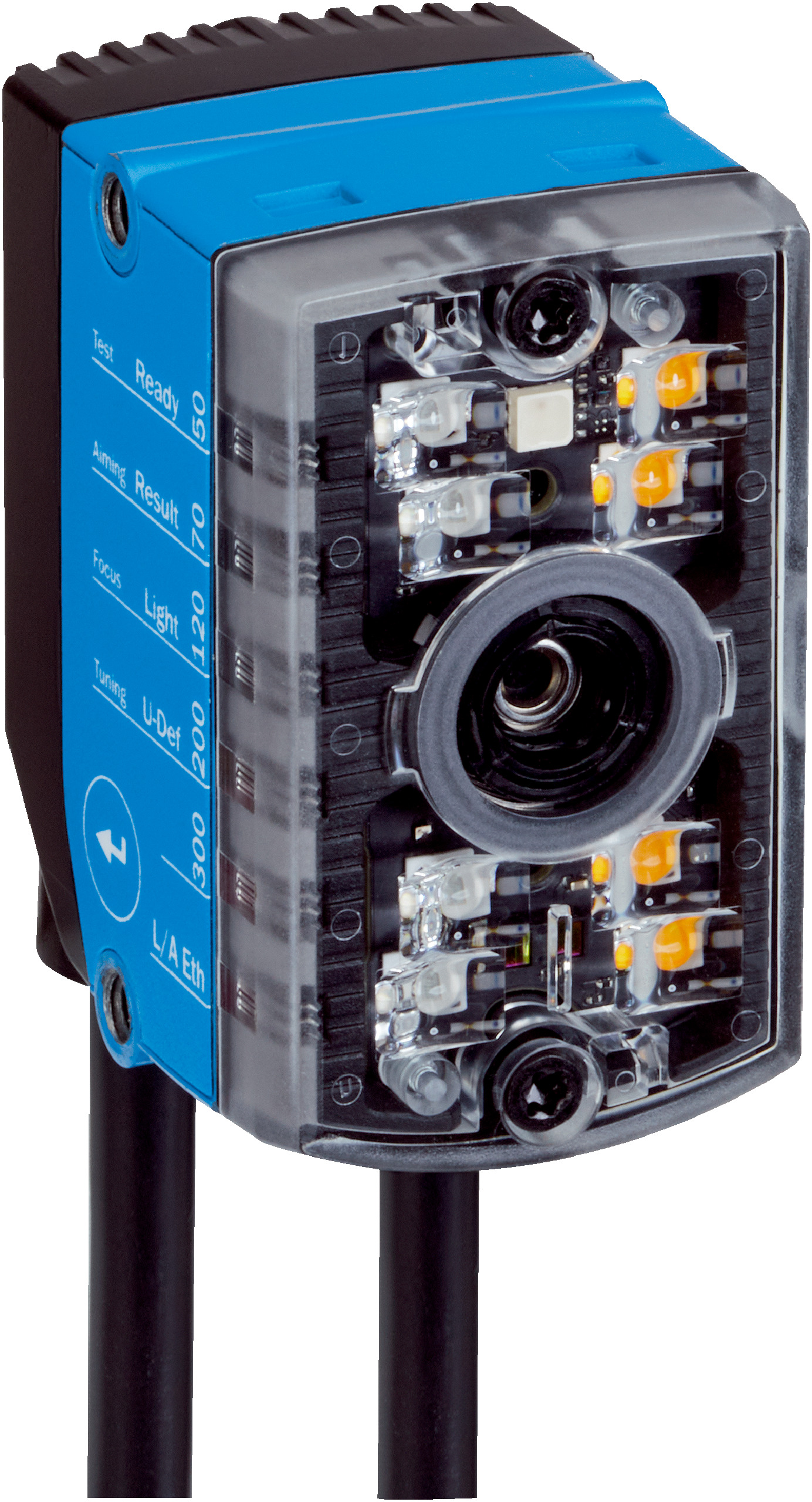

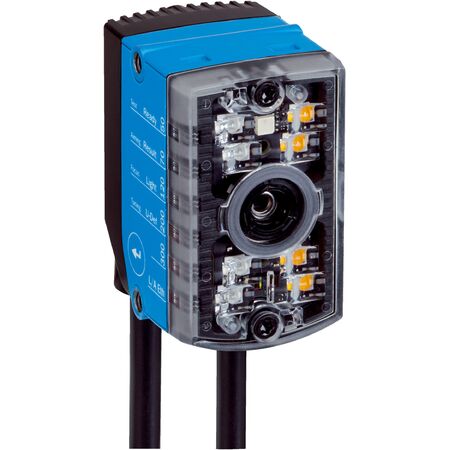

SICK V2D611D-MLSCE5 Barcode Reader | 1.2 Mpixel Resolution | IP65 Rated | by SICK
The SICK V2D611D-MLSCE5 barcode reader features a high-resolution 1.2 Mpixel CMOS sensor and integrated amber and blue LED illumination, making it perfect for industrial automation and logistics applications. With its IP65 rated zinc diecast housing, this device is built for durability and reliability in demanding environments, ensuring accurate code reading for quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Illumination colors: Amber (617 nm ±15 nm), Blue (470 nm ±15 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Focal length: 12 mm
- Scanning frequency: 40 Hz
- Code resolution: 0.02 mm
- Working range: 50 mm to 300 mm
- Connection types: Cable with M12 male connector (17-pin), Cable with M12 Ethernet socket (4-pin), Circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368-1
- Readable code structures: 1D, 2D, stacked, direct-marked codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Complete device with teach auto focus (liquid lens)
- CMOS monochrome sensor with 1,280 px x 960 px resolution
- Integrated amber and blue LED illumination
- Laser class 1 compliant with IEC and FDA standards
- Reads 1D, 2D, stacked, and direct-marked codes
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP65 rated zinc diecast housing for robust industrial use
- Automated parameter switching for flexible operation
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management for code scanning
- Manufacturing for quality control and traceability
- Packaging lines for code verification and data capture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D611D-MLSCE5 is available for immediate purchase, ideal for industrial automation and code reading applications.
