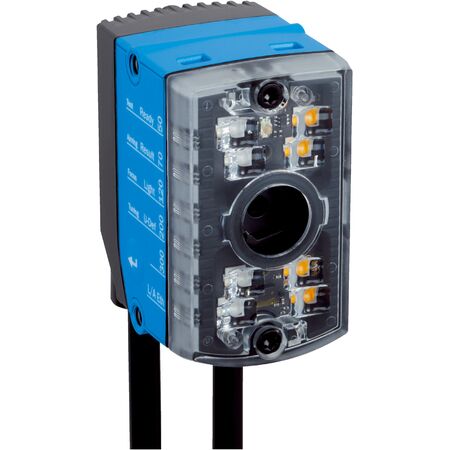

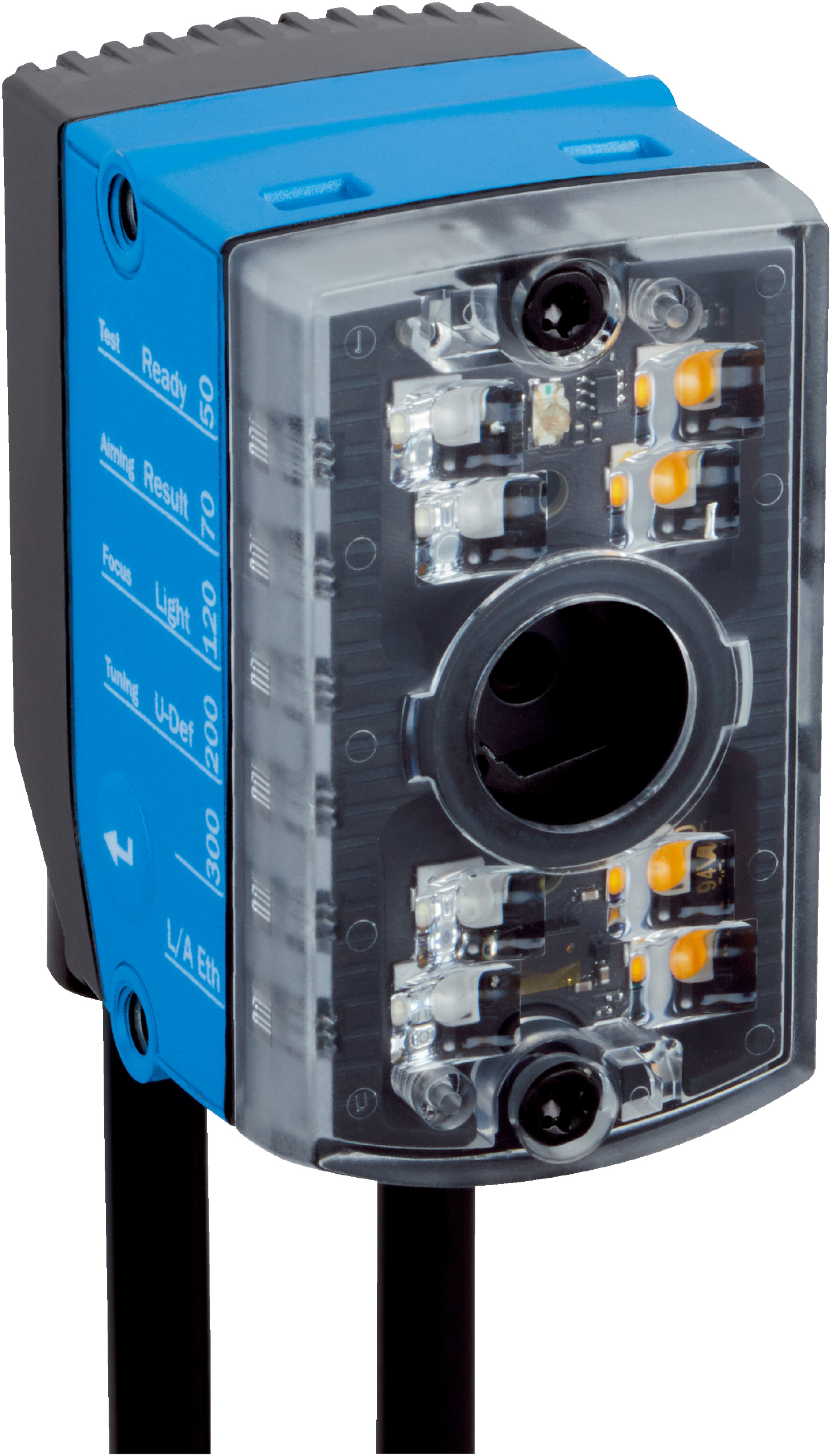

SICK V2D611R Barcode Scanner | CMOS 1280x960 | IP54 Rated | Adjustable Focus | by SICK
The SICK V2D611R Barcode Scanner features a high-resolution CMOS sensor with 1280 x 960 pixels, making it perfect for industrial automation and logistics applications. With adjustable manual focus and integrated amber and blue LED illumination, it ensures accurate scanning of 1D and 2D codes. Its IP54 rated housing protects against dust and water splashes, making it a reliable choice for manufacturing and warehousing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 960 pixels (1.2 Megapixel)
- Optical focus: Adjustable manual focus with 6 mm focal length lens
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Scanning frequency: 40 Hz
- Code resolution: 0.05 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, color light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Operator interface: Web server
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 6 mm focal length lens
- CMOS monochrome sensor with 1,280 px x 960 px resolution
- Integrated amber and blue LED illumination
- Supports reading of 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP54 rated zinc diecast housing for protection against dust and water splashes
- Complies with laser class 1 safety standards
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and product identification
- Retail for inventory management and point of sale
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611R-MMSBE4 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
