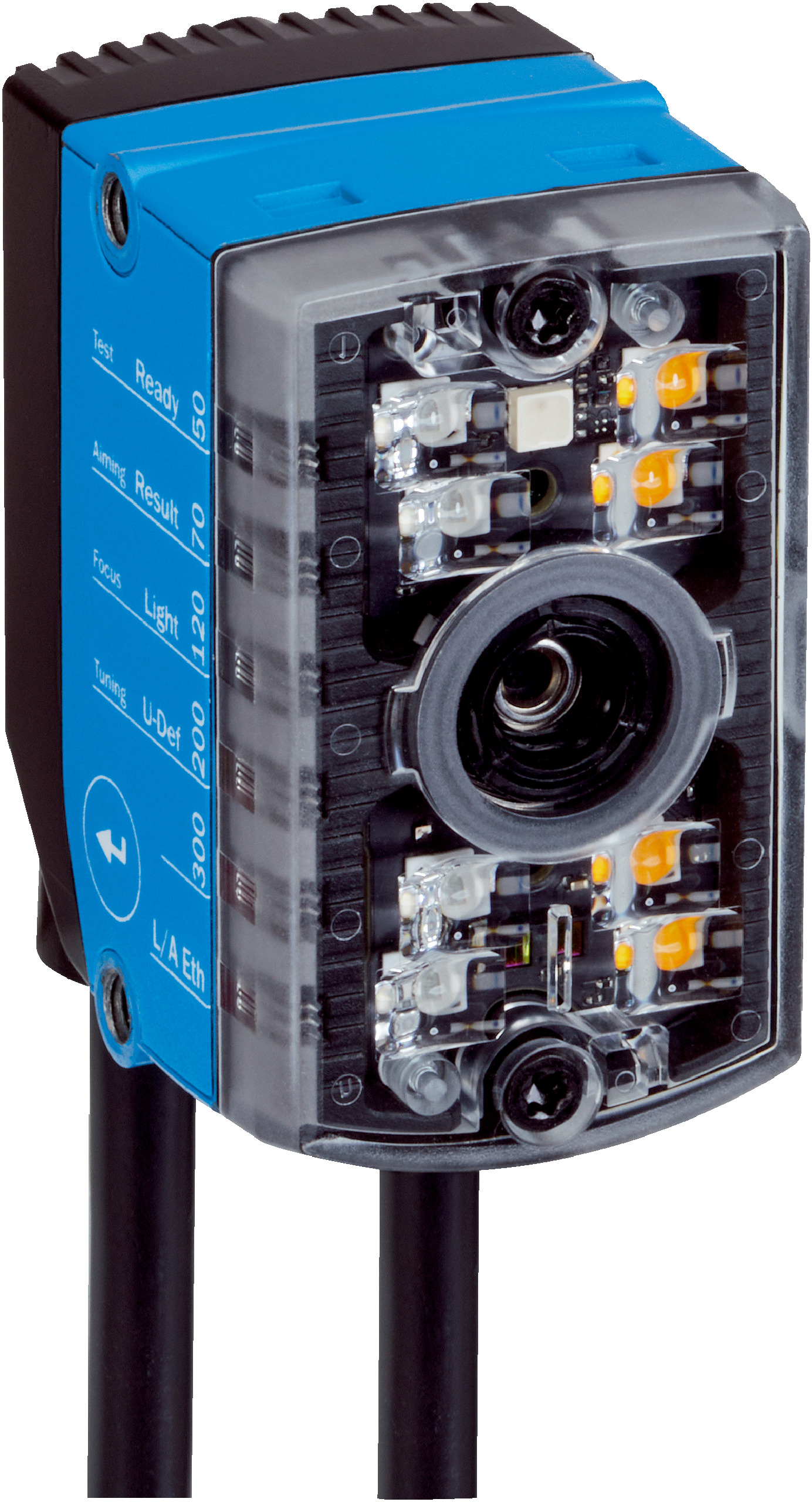

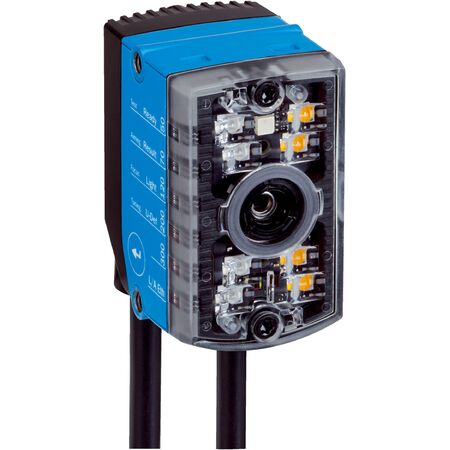

SICK V2D611R-MLSCE5 Barcode Reader | CMOS Monochrome Sensor | Teach Auto Focus | IP65 Rated | by SICK
The SICK V2D611R-MLSCE5 barcode reader features a CMOS monochrome sensor with a resolution of 1,280 px x 960 px and a teach auto focus liquid lens. Ideal for industrial automation and logistics, this device reads 1D and 2D codes with a scanning frequency of 40 Hz. With integrated amber and blue LED illumination and an IP65 rated housing, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Optical focus: Teach auto focus (liquid lens)
- Sensor: CMOS monochrome, 1,280 px x 960 px (1.2 Mpixel)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Focal length: 12 mm
- Scanning frequency: 40 Hz
- Code resolution: 0.02 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, color light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368-1
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 500
- Exposure time: ≥ 60 µs
- Automated parameter switching: Yes
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2
- Digital outputs: 3
- Optical indicators: 9 LEDs
- Control elements: 1 pushbutton
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Data storage: Image and data storage via external FTP
- Encoder frequency max: 300 Hz
- External illumination control: Via digital output (max 24 V trigger)
- EMC: EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Complete device with teach auto focus (liquid lens)
- CMOS monochrome sensor with 1,280 px x 960 px resolution (1.2 Mpixel)
- Integrated amber and blue LED illumination
- Laser class 1 compliant with IEC and FDA standards
- Scanning frequency of 40 Hz with code resolution of 0.02 mm
- Reads 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP65 rated zinc diecast housing with plastic window
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D611R-MLSCE5 barcode and 2D code reader is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
