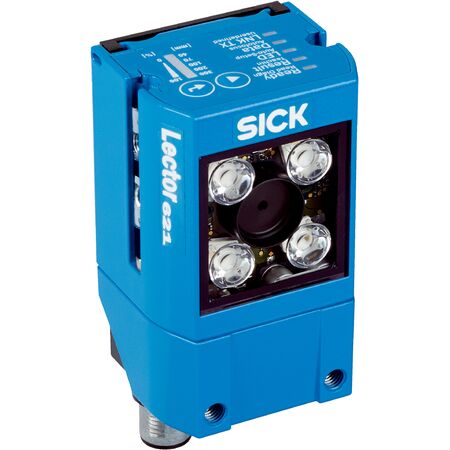

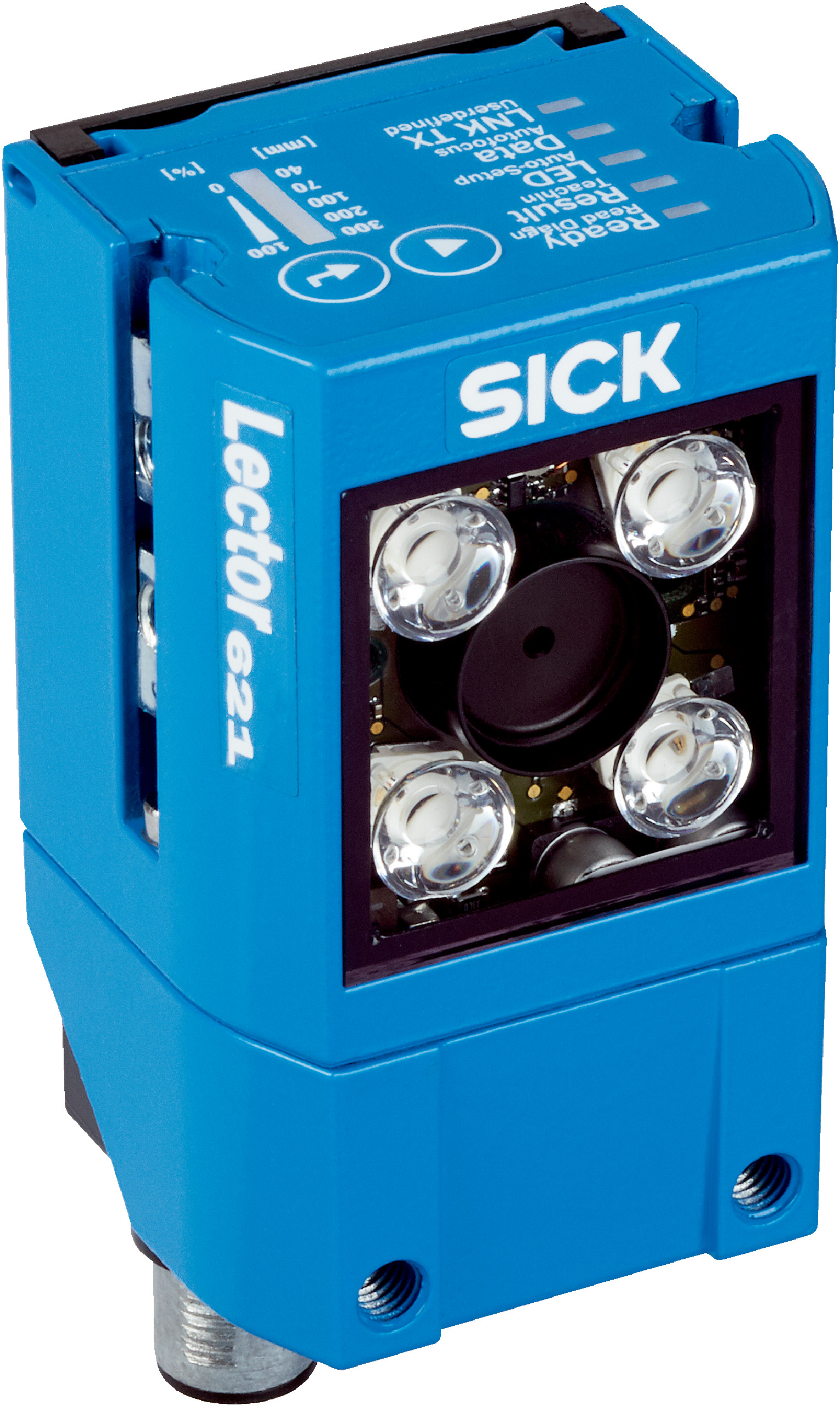

SICK V2D621D Code Reader | 1.3MP CMOS Sensor | IP65 Rated | by SICK
The SICK V2D621D Code Reader features a 1.3MP CMOS sensor and integrated red and blue LED illumination, making it perfect for industrial automation and barcode scanning applications. With a robust IP65 rated aluminum housing, this device ensures durability and reliability in demanding environments, while supporting a wide range of code types for versatile use in logistics, manufacturing, and pharmaceuticals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 1,024 px (1.3 Mpixel)
- Illumination: Integrated red (617 nm ± 15 nm) and blue (470 nm ± 15 nm) LEDs
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Scanning frequency: 50 Hz
- Code resolution: ≥ 0.05 mm
- Working range: 70 mm to 1,500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code structures: 1D, stacked, 2D, direct-marked codes
- Supported bar code types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
- Operator interfaces: Web server, SOPAS ET software
- Memory card: Optional microSD for image and data storage
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1,280 px x 1,024 px resolution
- Integrated red and blue LED illumination
- Laser alignment aid with Class 1 laser safety
- Reads 1D, stacked, 2D, and direct-marked codes
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing
- 16 LED optical indicators and acoustic beeper
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card for image and data storage
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and traceability
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK V2D621D-2MSFBB5 code reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
