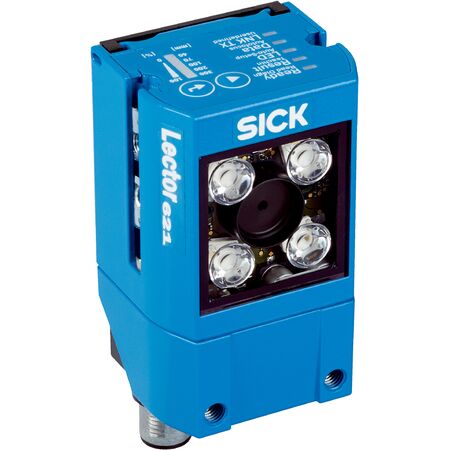

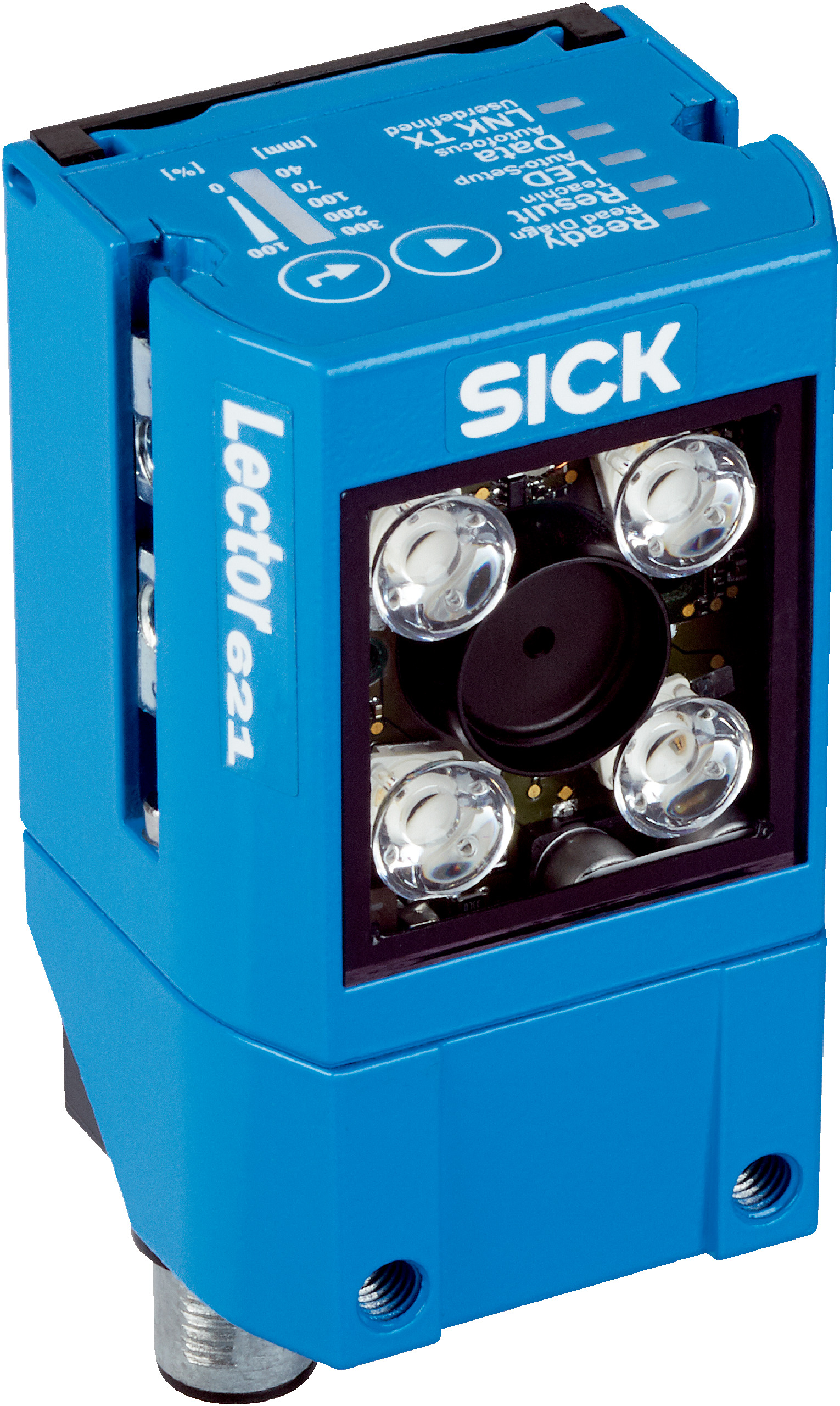

SICK V2D621R-2MCFFB6 Code Reader | CMOS Monochrome Sensor | IP65 Rated | 1.3 Megapixel Resolution | by SICK
The SICK V2D621R-2MCFFB6 code reader features a high-resolution CMOS monochrome sensor with 1.3 Megapixel clarity, making it perfect for industrial automation and logistics applications. With integrated red and blue LED illumination and an IP65 rated aluminum housing, it ensures reliable performance in cold storage environments. This versatile device reads 1D and 2D codes, supporting various industrial communication interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Scanning frequency: 50 Hz
- Code resolution: 0.25 mm
- Working range: 300 mm to 1500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female, circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code structures: 1D, stacked, 2D codes
- Supported bar code types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 500 (multiplexer function in CAN operation)
- Automated parameter switching: Yes
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT (optional), Serial (RS-232, RS-422), CAN, CANopen, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 16 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Data storage: Image and data storage via microSD and FTP
- Encoder frequency max: 300 Hz
- External illumination control: Via digital output (max 24 V trigger)
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: 0°C to +50°C (special cold storage -35°C to +40°C)
- Storage temperature: -35°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on code
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red and blue LED illumination with visible wavelengths
- Laser alignment aid with red laser class 1
- Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- Supports multiple industrial communication interfaces including Ethernet, PROFINET, EtherNet/IP, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial
- IP65 rated aluminum die cast housing with plastic window
- Operating temperature range 0°C to +50°C, with special cold storage conditions down to -35°C
- 16 LED optical indicators and acoustic beeper for status feedback
- Supports image and data storage via optional microSD card and FTP
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for barcode and 2D code reading
- Cold storage environments
- Logistics and packaging code verification
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Supports cold storage applications minimizing need for additional heating
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D621R-2MCFFB6 code reader is available for immediate purchase, ideal for industrial automation, logistics, and cold storage applications.
