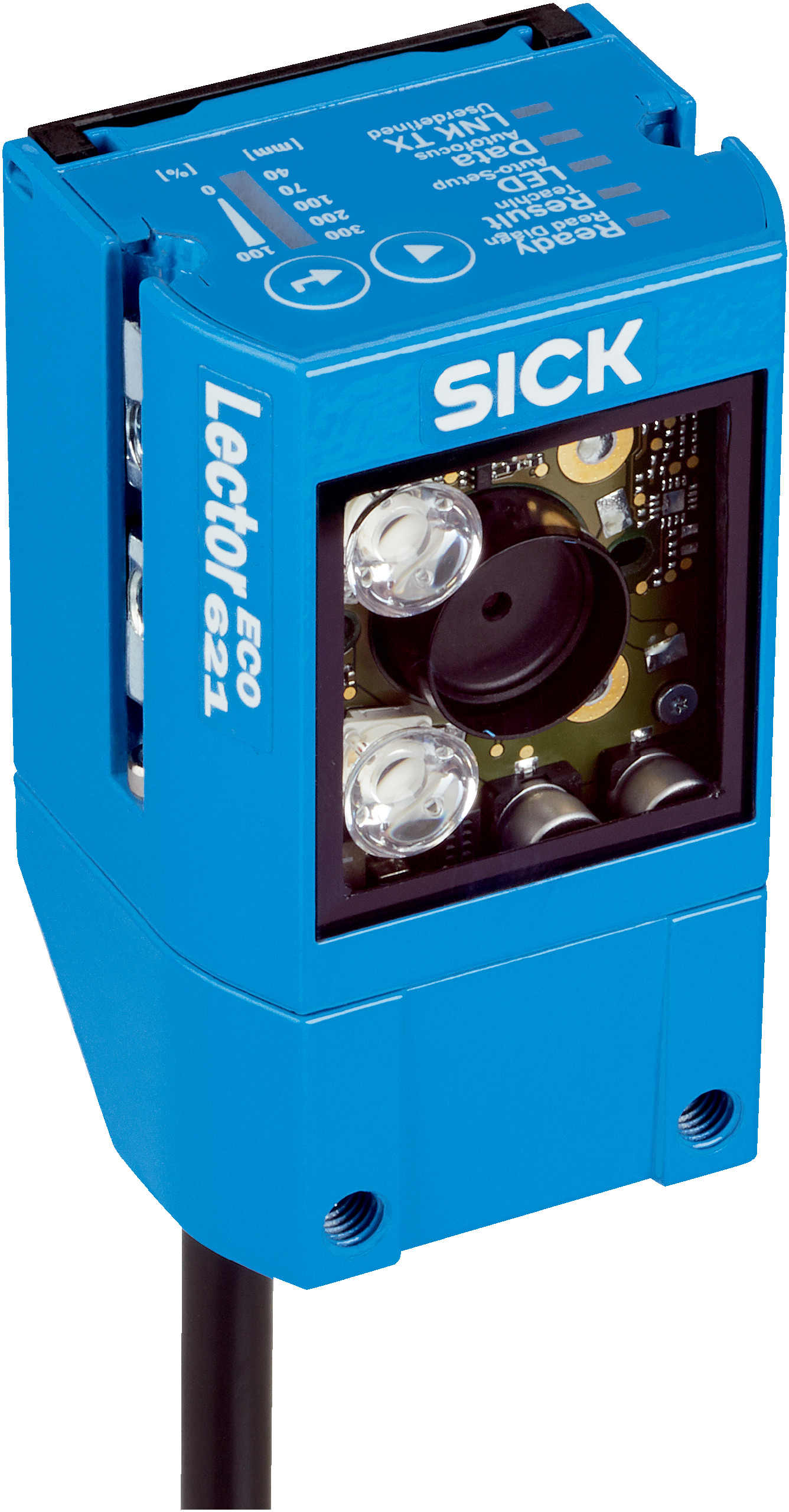

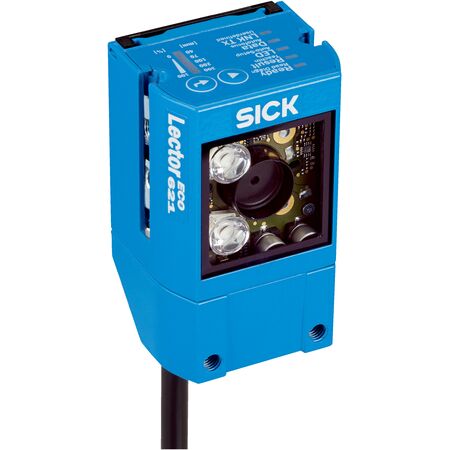

SICK V2D621R-2MREBE5 Barcode Scanner | CMOS 1.3 Mpixel | Adjustable Focus | IP65 Rated | by SICK
The SICK V2D621R-2MREBE5 barcode scanner features a high-resolution CMOS monochrome sensor with 1.3 Mpixel clarity, adjustable optical focus, and integrated red LED illumination. Perfect for industrial automation and logistics, this scanner reads 1D and 2D codes with a working range of 70 mm to 1500 mm, ensuring reliable performance in various applications. Its robust aluminum housing and IP65 rating make it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable (electrical)
- Illumination: Integrated red LED, 617 nm ± 15 nm
- LED class: 1 (IEC 62471:2006-07, EN 62471:2008-09)
- Feedback spot: Green LED, 525 nm ± 15 nm
- Laser class: EN 60825-1:2014+A11:2021
- Focal length: 9.6 mm
- Scanning frequency: 25 Hz
- Code resolution: ≥ 0.05 mm
- Working range: 70 mm to 1500 mm
- Connection: 1 x 15-pin D-Sub HD male connector (0.9 m cable)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable codes: 1D, stacked, 2D codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 16 LEDs, acoustic beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Adjustable electrical optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red LED illumination (617 nm) with LED class 1 safety
- Green visible LED feedback spot (525 nm)
- Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 25 Hz
- Working range from 70 mm to 1500 mm
- Multiple interface options including PROFINET, EtherCAT, Serial (RS-232/422), CAN, CANopen, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0°C to +50°C
- 16 LEDs for status and feedback, acoustic beeper, and web server interface
- Data storage via microSD and external FTP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connection and integration with industrial networks.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Retail and supply chain management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Integrated LED illumination minimizes need for external lighting
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D621R-2MREBE5 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
