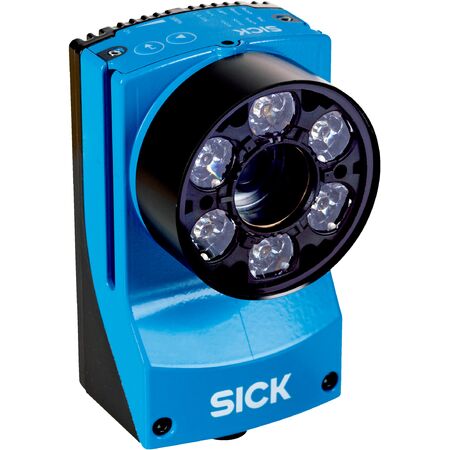

SICK V2D631D Barcode Scanner | CMOS Monochrome Sensor | IP67 Rated | Adjustable Focus | by SICK
The SICK V2D631D Barcode Scanner features a high-resolution CMOS monochrome sensor with 1.3 Megapixel clarity, making it perfect for industrial automation and logistics applications. With adjustable manual optical focus and integrated blue LED illumination, it ensures accurate code reading in various environments. Built to withstand harsh conditions with an IP67 rating, this scanner is ideal for quality control and traceability in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Integrated blue LED
- Feedback spots: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount (compact), 1/1.8" optical format, 35 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.3 megapixels resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (external illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked, direct-marked codes including GS1-128, UPC, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interfaces: Web server, 2 buttons
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB (optional)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated blue LED illumination with visible feedback spots in green and red
- Laser alignment aid with Class 1 laser safety compliance
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Operating temperature range from 0°C to +50°C with high vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and manufacturing for barcode and code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631D-MBMGB2 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
