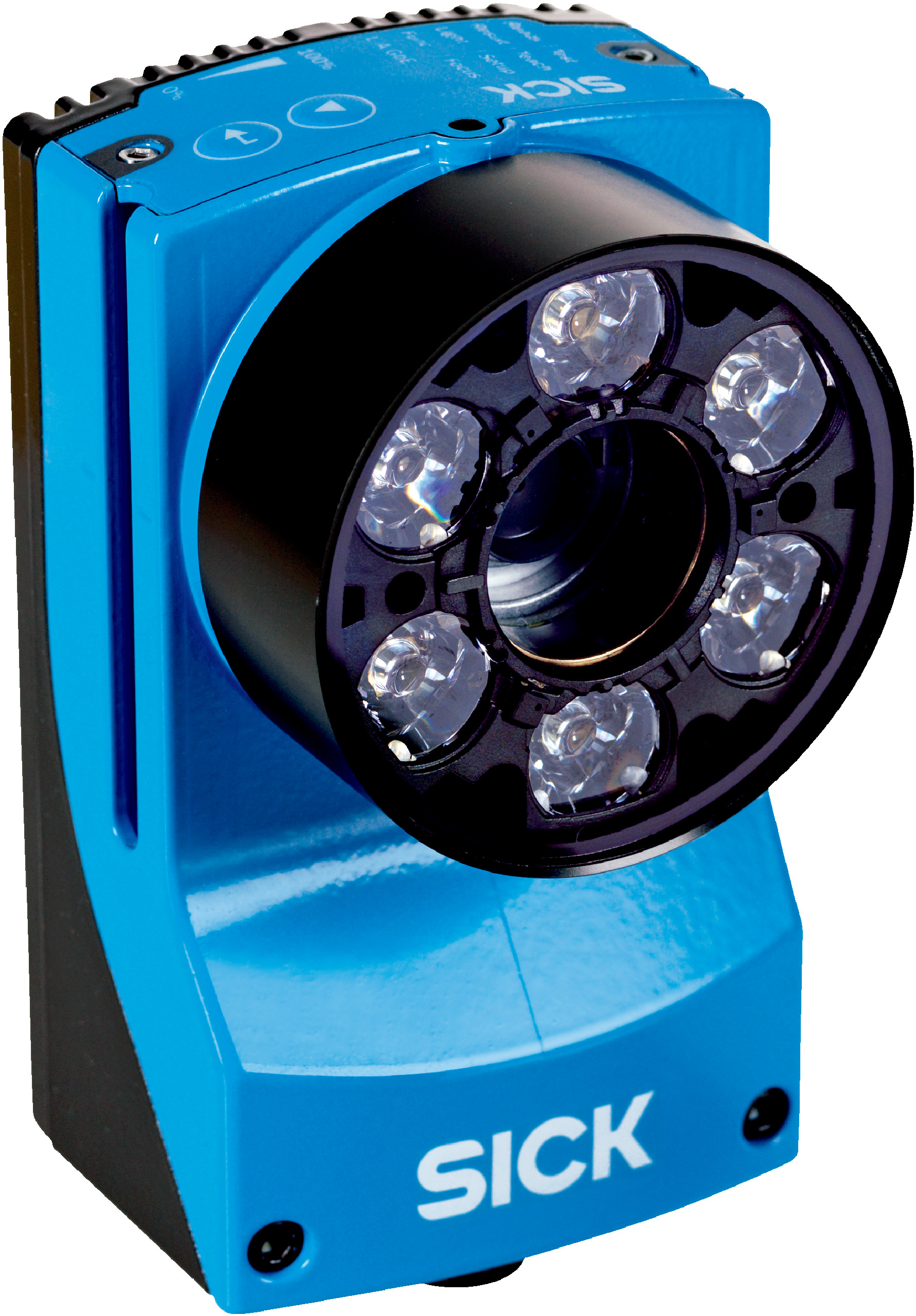

SICK V2D632R Barcode Reader | 1.9 Mpixel CMOS Sensor | IP67 Rated | Adjustable Optical Focus | by SICK
The SICK V2D632R Barcode Reader features a 1.9 Mpixel CMOS sensor with adjustable optical focus, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and robust IP67-rated housing, this scanner ensures reliable performance in demanding environments, ideal for quality control and product tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1600 px x 1200 px (1.9 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green and red visible LEDs
- Laser alignment aid: Red laser, class 1
- Lens: S-mount, 9.6 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB (optional)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Complete device with adjustable manual optical focus
- CMOS monochrome sensor with 1,600 px x 1,200 px resolution (1.9 Mpixel)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Laser class 1 compliant with IEC 60825-1)
- S-mount lens with 9.6 mm focal length and aperture 8
- Scanning frequency up to 50 Hz at full resolution
- Reads 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple interface options: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Robust aluminum die cast housing with IP67 rating
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation and manufacturing
- Logistics and warehouse management
- Quality control and inspection
- Product tracking and identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

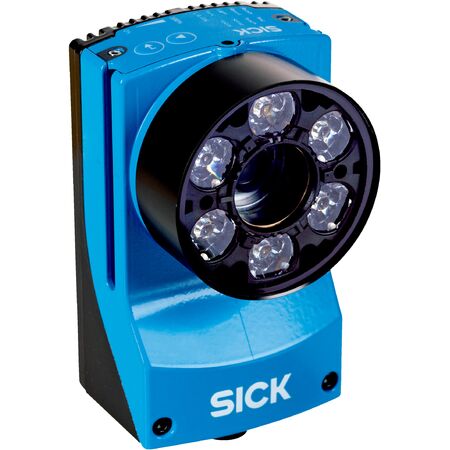

The SICK V2D632R-MISCB8 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
