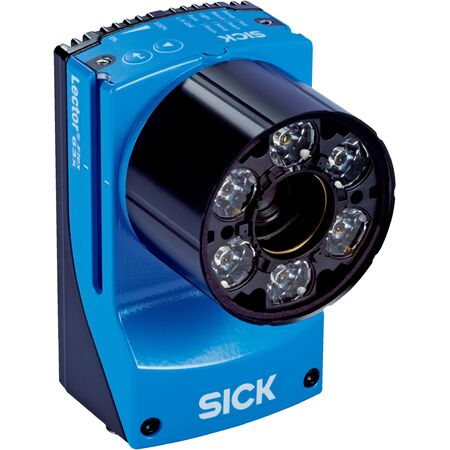

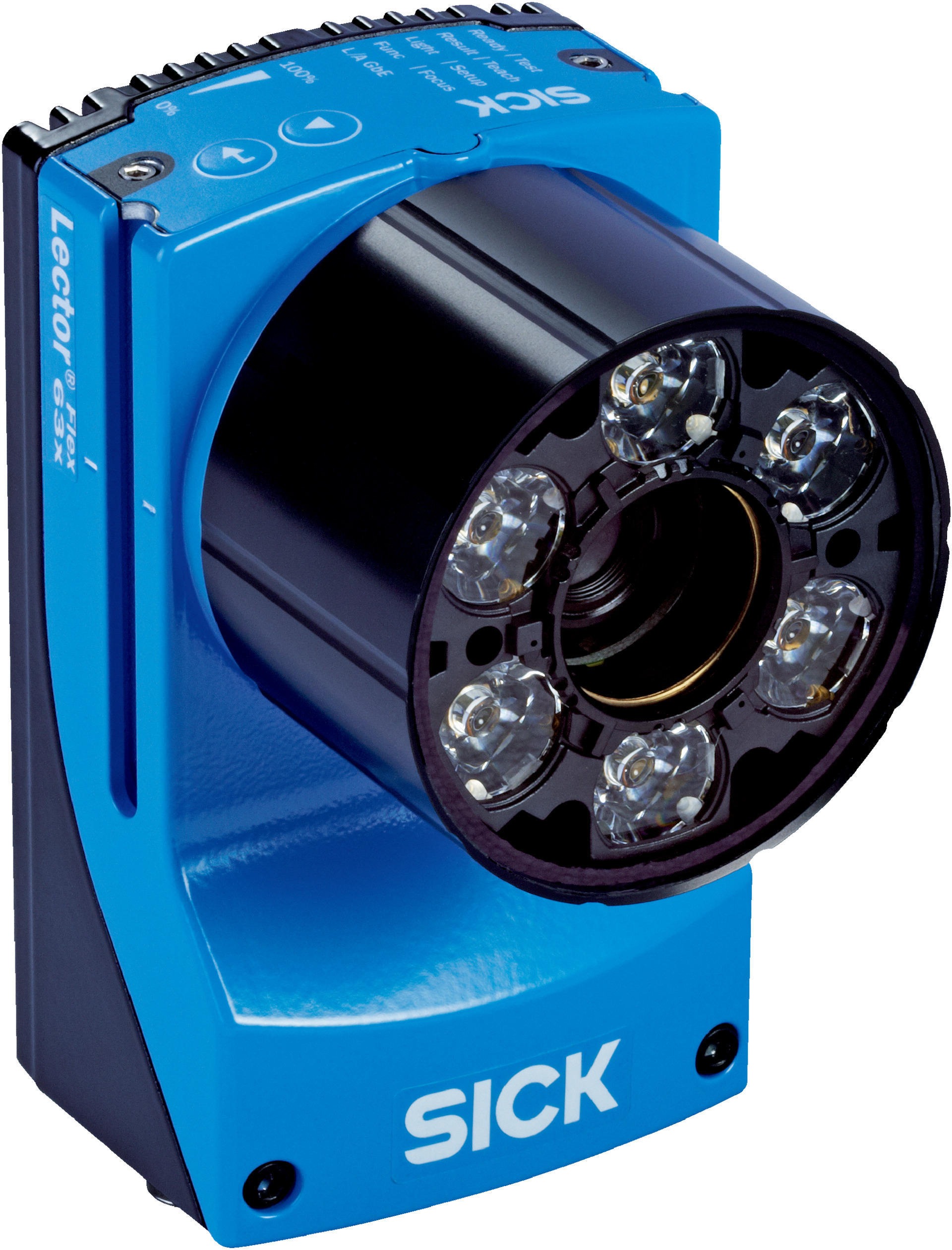

SICK V2D632R Barcode Scanner | CMOS Monochrome | 1.9 Megapixel | IP67 Rated | by SICK
The SICK V2D632R Barcode Scanner features a high-resolution 1.9 Megapixel CMOS monochrome sensor and adjustable manual optical focus, making it ideal for industrial automation and logistics applications. With integrated white LED illumination and a robust IP67-rated aluminum housing, this scanner ensures reliable performance in demanding environments, supporting various barcode types and communication interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm) and Red (630 nm) LEDs
- Alignment aid: Red laser (630-680 nm), Class 1 laser
- Lens: S-mount, 25 mm focal length, aperture 8, optical format 1/1.8"
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 74mm x 108mm x 63mm
- Weight: 0.5 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser)
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency up to 50 Hz at full resolution
- Wide working range from 50 mm to 2200 mm
- Robust aluminum die cast housing with IP67 rating
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Configurable digital inputs and outputs
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure optimal performance and safety.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Retail and supply chain management
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MWSFB4 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
