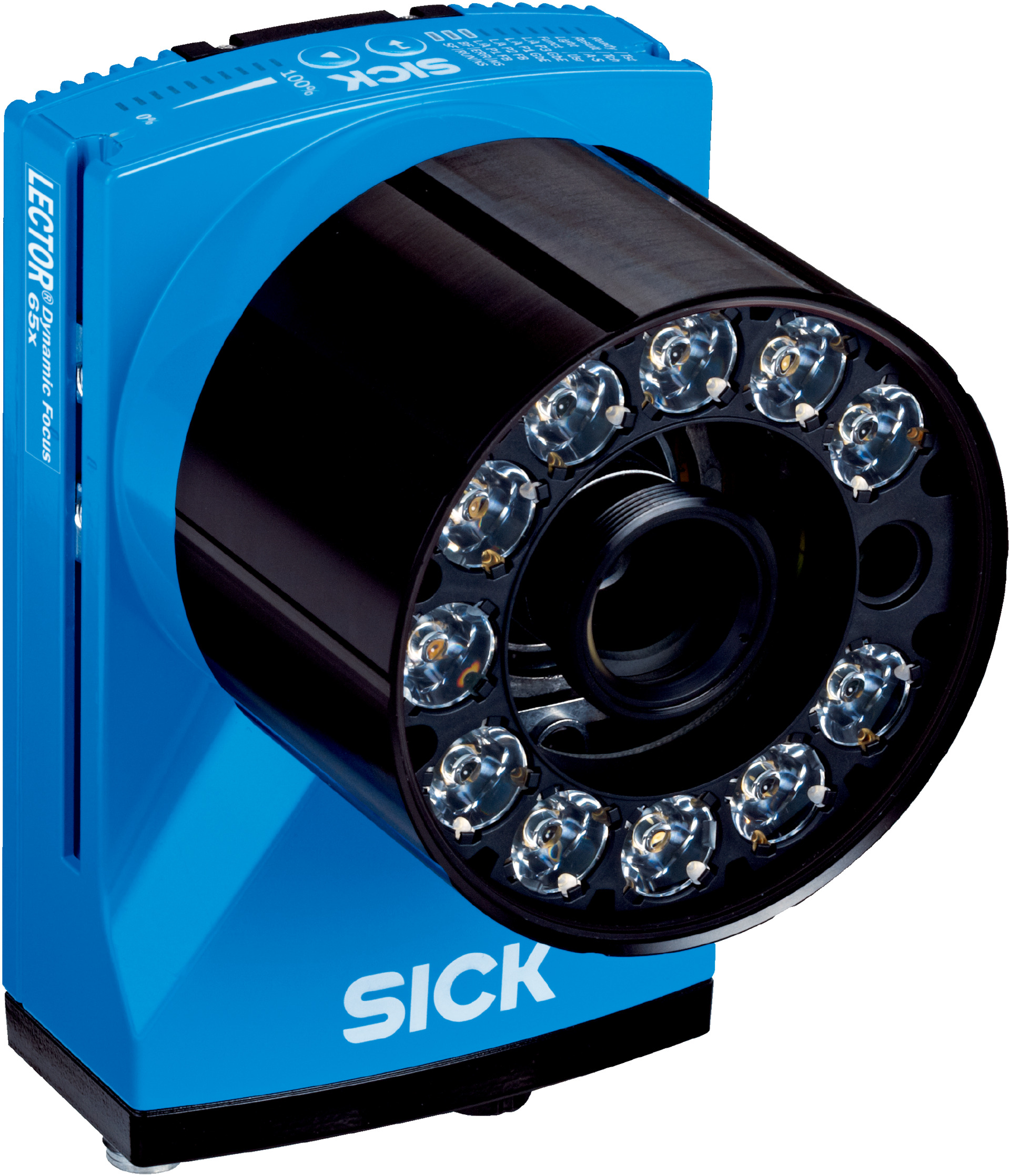

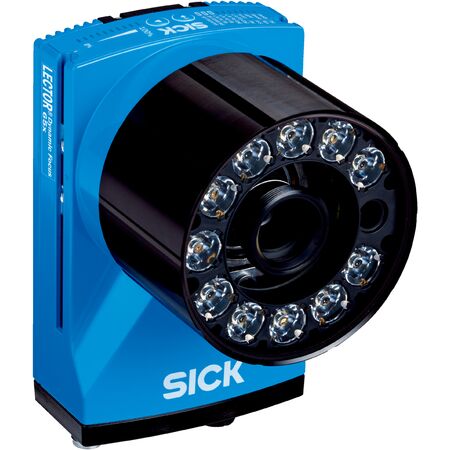

SICK V2D652R-MEWKA6 2D Code Scanner | CMOS Sensor | IP65 Protection | by SICK
The SICK V2D652R-MEWKA6 2D code scanner features a high-resolution CMOS sensor with dynamic focus control, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and robust IP65-rated housing, it ensures reliable performance in various environments. Ideal for barcode reading, quality control, and inventory tracking, this scanner supports multiple code formats and offers advanced feedback with a green LED spot.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 1088 px (2.1 Megapixel)
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 70 Hz at 2 megapixels resolution
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2500 mm
- Connection types: M12 17-pin plug, M12 8-pin sockets, M8 4-pin USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, stacked, 2D codes including GS1-128, UPC, QR code, Data Matrix ECC200
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs/outputs: 4 inputs, 6 outputs configurable
- Operator interface: Web server, SOPAS ET configuration software
- Memory: 512 MB internal, optional microSD up to 16 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2 / EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 x 1088 pixels (2.1 Megapixel)
- Integrated white LED illumination with risk group 1 safety
- Multiple code reading capabilities including 1D, 2D, and stacked codes
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Advanced feedback with visible green LED spot and red laser alignment aid
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range from 0°C to +50°C with high ambient light immunity
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network interfaces to ensure optimal performance and safety.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and inventory tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D652R-MEWKA6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
