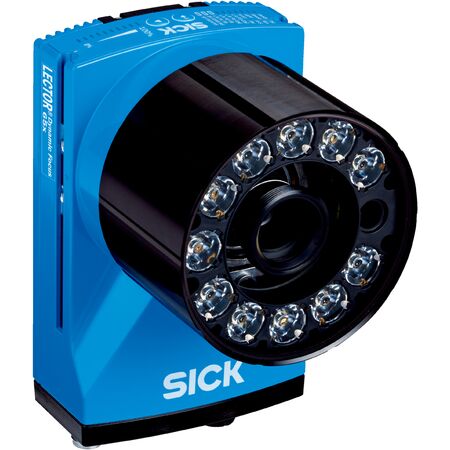

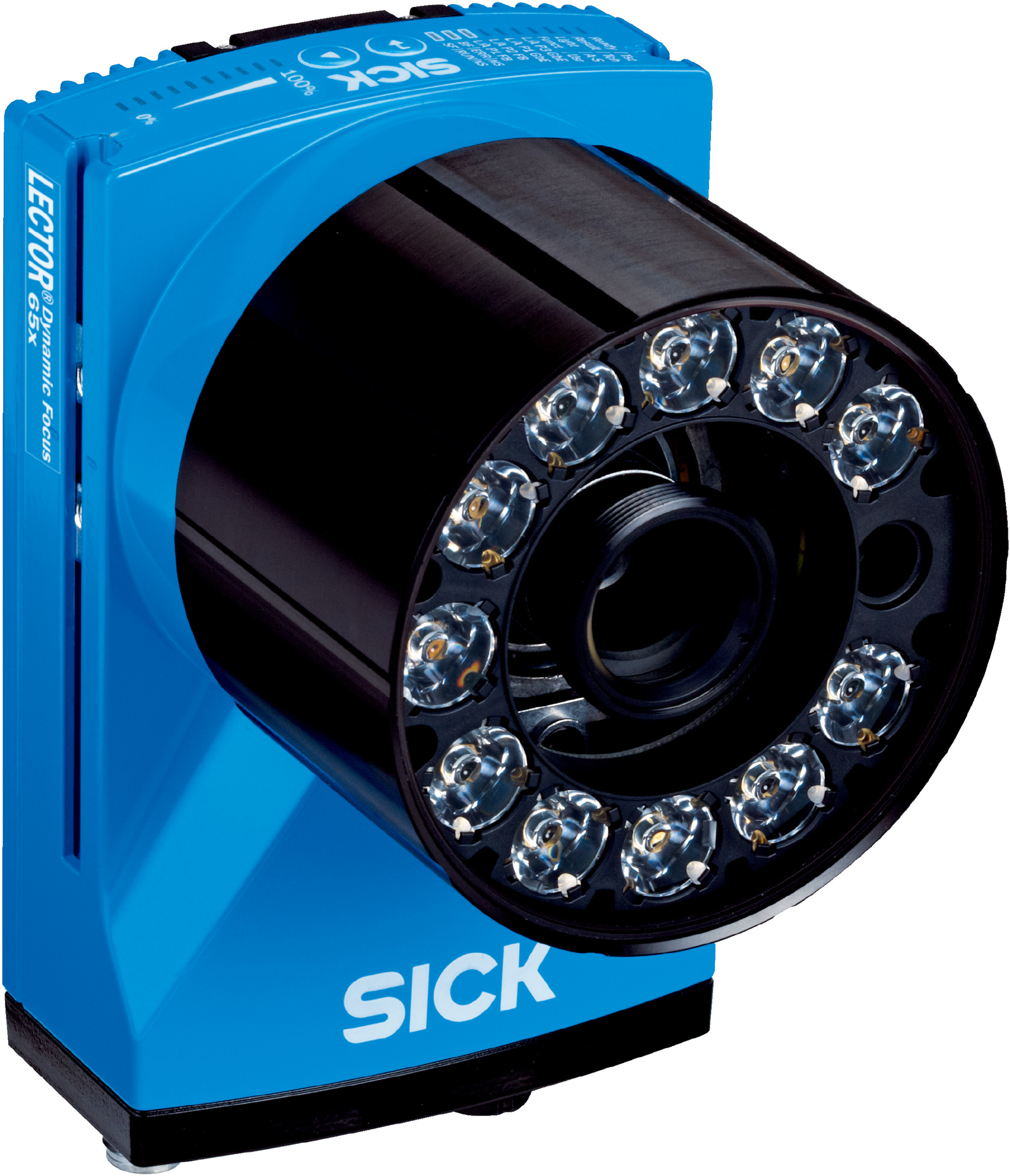

SICK V2D652R-MEWHF6 Barcode Reader | Dynamic Focus Control | 2048 x 1088 Resolution | IP65 Rated | by SICK
The SICK V2D652R-MEWHF6 barcode reader features dynamic focus control and a high-resolution CMOS sensor, making it ideal for industrial automation and logistics applications. With integrated white LED illumination and support for multiple barcode types, this robust scanner ensures reliable performance in quality control and material handling tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 px x 1088 px resolution
- Illumination: Integrated white LED, Risk group 1
- Optical focus: Dynamic focus control
- Lens: C-mount, 1" optical format, 54 mm focal length, aperture 8
- Scanning frequency: 70 Hz at 2 megapixels resolution
- Code resolution: ≥ 0.12 mm
- Working range: 670 mm to 2000 mm
- Connection types: Multiple M12 and M8 plugs and sockets for CAN, Ethernet, and external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typically 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012), glass window
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable code structures: 1D, stacked, 2D codes
- Supported barcode types: GS1-128, UPC, EAN, Code 39, Code 128, Data Matrix ECC200, QR code, PDF417, and more
- Interfaces: Ethernet (TCP/IP), EtherNet/IP™, CAN, digital inputs/outputs
- Indicators: 21 LEDs, beeper/buzzer
- Control: 2 buttons, web server interface
- Configuration software: SOPAS ET
- Memory: 512 MB internal, optional microSD up to 16 GB
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 px x 1088 px (2.1 Mpixel)
- Integrated white LED illumination with risk group 1 safety
- Green visible LED feedback spot and red laser alignment aid
- Supports multiple barcode types including 1D, 2D, and stacked codes
- Ethernet, CAN, and EtherNet/IP™ interfaces for flexible connectivity
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from 0 °C to +50 °C
- 512 MB internal image storage and optional microSD card support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product identification
- Quality control and inspection systems
- Material handling and tracking systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D652R-MEWHF6 barcode reader is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
