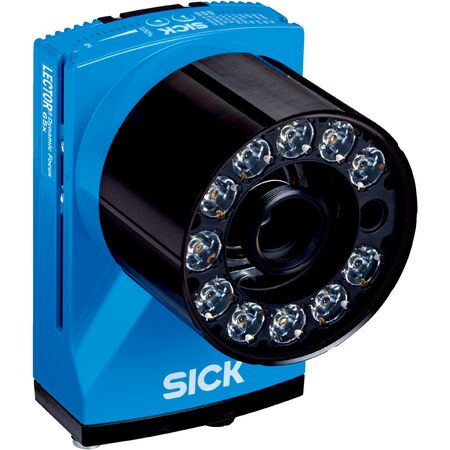

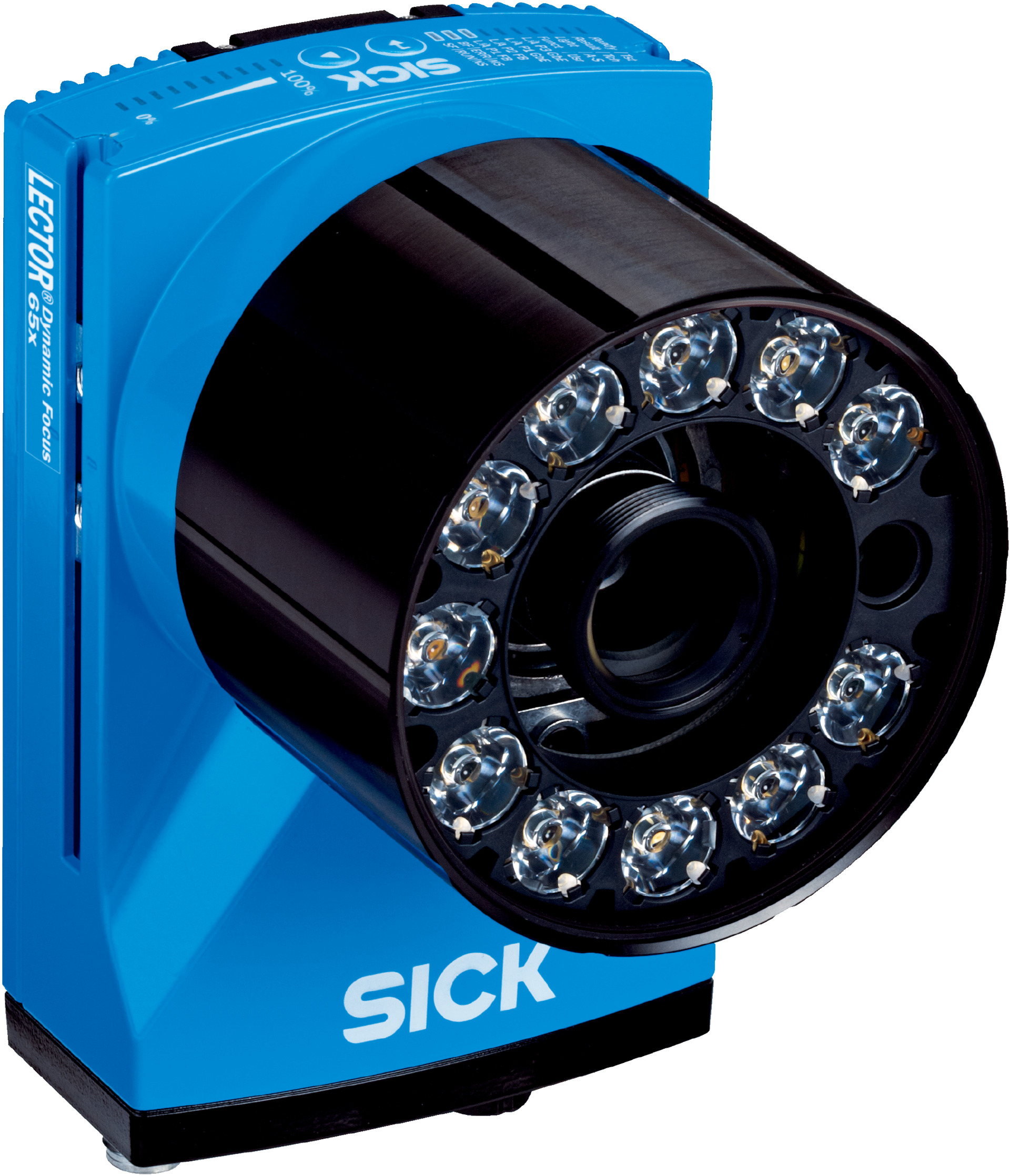

SICK V2D652R-MEWKF6 Barcode Scanner | 2.1 Mpixel CMOS Sensor | Dynamic Focus Control | IP65 Rated | by SICK
The SICK V2D652R-MEWKF6 Barcode Scanner features a high-resolution 2.1 Mpixel CMOS sensor and dynamic focus control, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and multiple communication interfaces, this scanner ensures reliable performance in quality control and traceability tasks. Its robust IP65-rated housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 px x 1088 px (2.1 Mpixel)
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 70 Hz at 2 megapixels resolution
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2,500 mm
- Connection types: M12 and M8 plugs and sockets for CAN, Ethernet, external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- Readable code structures: 1D, stacked, 2D codes
- Supported bar code types: GS1-128, UPC, EAN, Code 39, Code 128, and others
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked code types: PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interfaces: Web server, 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 px x 1088 px (2.1 Mpixel)
- Integrated white LED illumination with risk group 1 safety
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, and Serial
- Robust aluminum die cast housing with IP65 rating
- Supports a wide range of 1D, 2D, and stacked code types
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range from 0 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and systems requiring high-resolution code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing and long MTBF of 100,000 hours reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D652R-MEWKF6 is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
