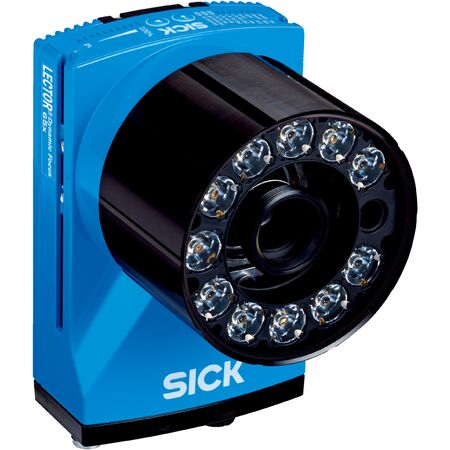

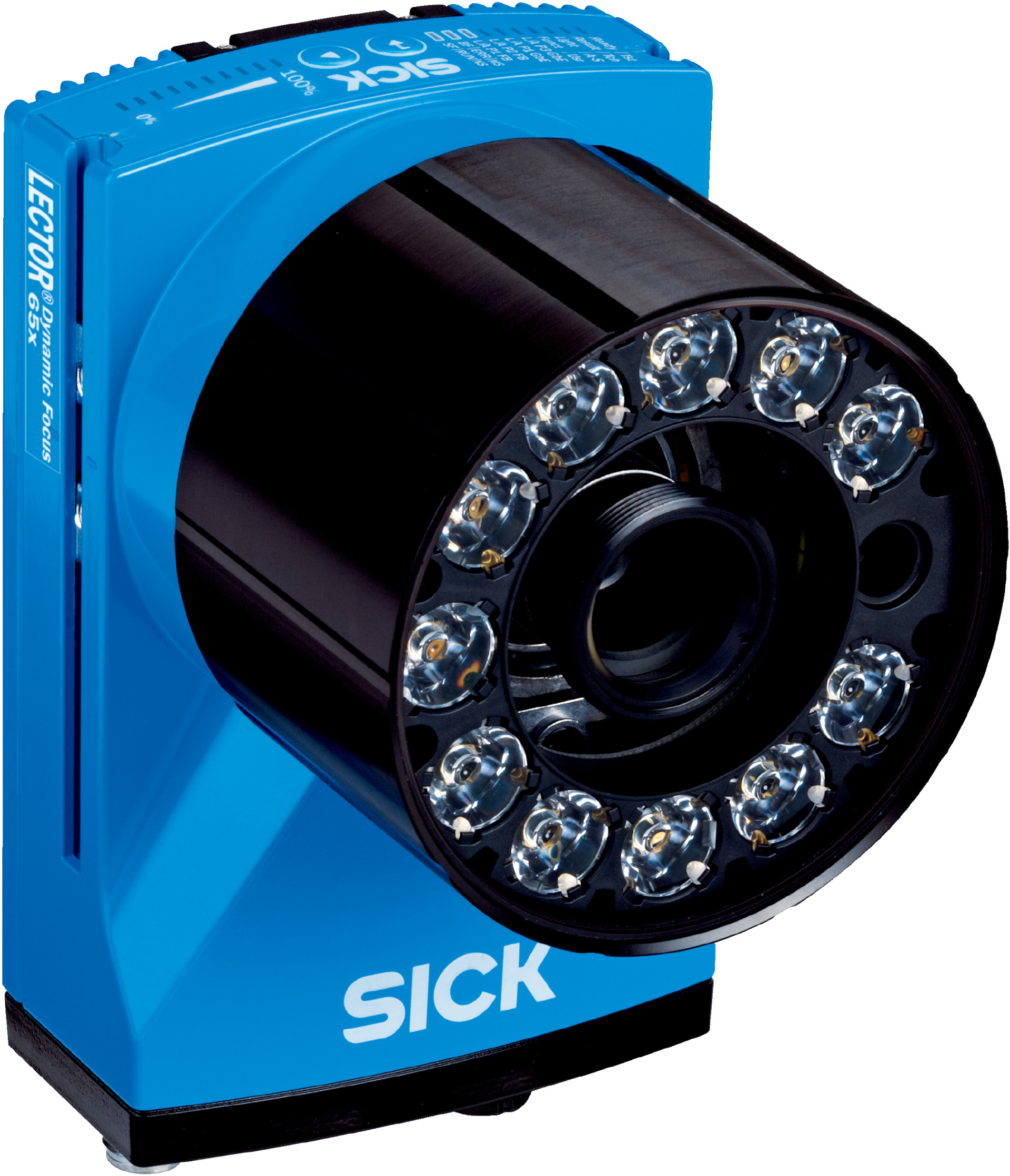

SICK V2D654R Barcode Scanner | CMOS Monochrome Sensor | 2048 x 2048 Resolution | IP65 Rated | by SICK
The SICK V2D654R Barcode Scanner features a high-resolution CMOS monochrome sensor with 2048 x 2048 pixels, ensuring precise barcode reading for industrial automation and logistics. With dynamic focus control and integrated white LED illumination, this scanner is perfect for quality control and inspection systems, offering robust performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 MP)
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 54 mm focal length, aperture 8
- Scanning frequency: 40 Hz at 4 MP resolution
- Code resolution: ≥ 0.12 mm
- Working range: 670 mm to 2000 mm
- Connection types: M12 17-pin plug, M12 8-pin sockets, M8 4-pin USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1-128, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6; Configurable inputs and outputs
- Indicators: 21 LEDs, beeper/buzzer
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 x 2048 pixels (4.2 Megapixels)
- Integrated white LED illumination with risk group 1 safety
- Multiple code reading capabilities including 1D, 2D, and stacked codes
- Robust aluminum die-cast housing with IP65 rating
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range from 0°C to +50°C with high ambient light immunity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with RoHS and China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D654R-MEWHA6 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
