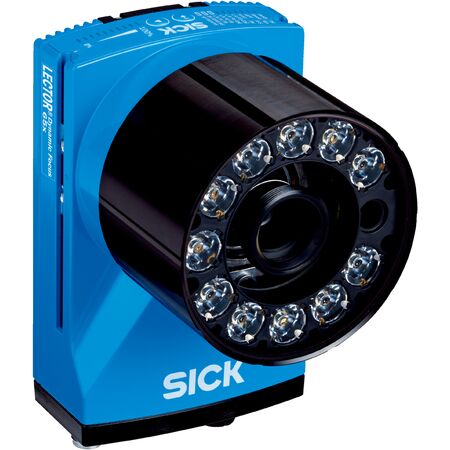

SICK V2D654R-MEWKF6 Industrial Code Scanner | 4.2MP CMOS Sensor | Dynamic Focus Control | IP65 Rated | by SICK
The SICK V2D654R-MEWKF6 Industrial Code Scanner features a high-resolution 4.2MP CMOS sensor and dynamic focus control, making it perfect for industrial automation and barcode reading applications. With integrated white LED illumination and robust IP65-rated housing, it ensures reliable performance in various environments, ideal for logistics, quality control, and traceability in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 MP)
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 40 Hz at 4 MP resolution
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2500 mm
- Connection types: Multiple M12 and M8 plugs and sockets for CAN, Ethernet, external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012), glass window
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1, QR, Data Matrix, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, CAN
- Digital inputs/outputs: 4 inputs, 6 outputs configurable
- Indicators: 21 LEDs, beeper/buzzer
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2 / EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 x 2048 pixels (4.2 Megapixel)
- Integrated white LED illumination with risk group 1 safety
- Green visible LED feedback spot and red laser alignment aid
- Supports 1D, 2D, and stacked code types including GS1, QR, Data Matrix, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, CAN, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0°C to +50°C with high EMC and vibration resistance
- Internal image storage of 512 MB and optional microSD card support
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product identification
- Quality control and inspection systems
- Traceability in pharmaceutical and postal services
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with RoHS and China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D654R-MEWKF6 is available for immediate purchase, ideal for industrial automation and barcode reading applications.
