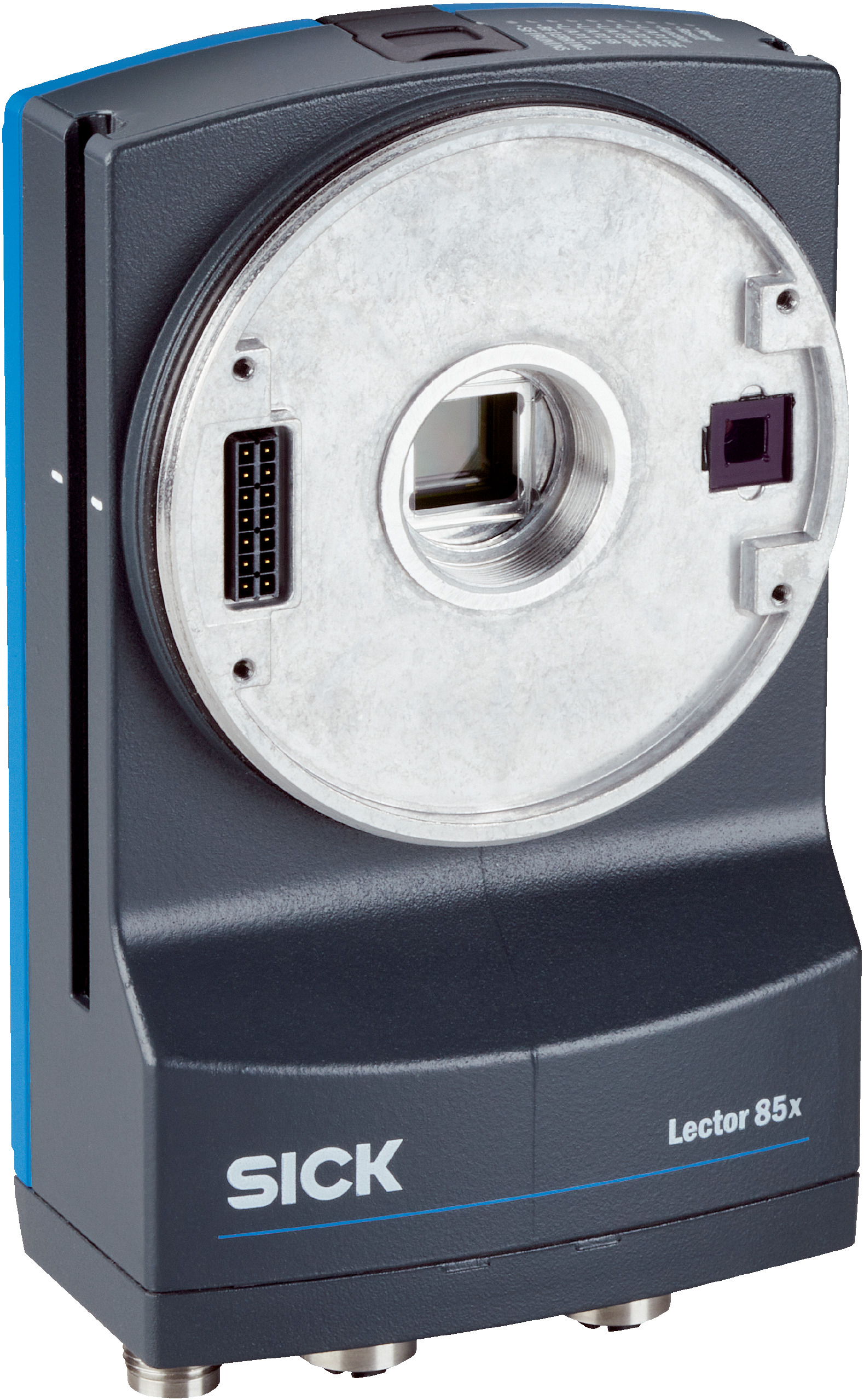

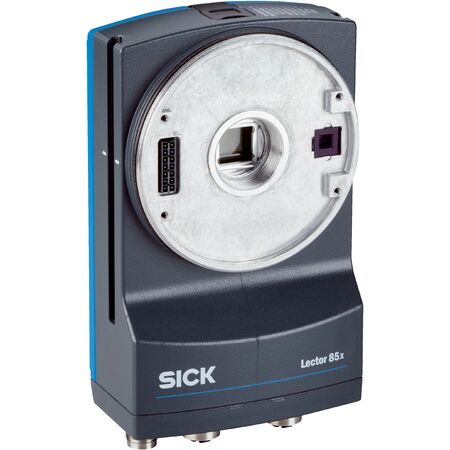

SICK V2D8505R-1MCXXXAF0SXXXX CMOS Sensor | 5 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK V2D8505R-1MCXXXAF0SXXXX CMOS sensor delivers high-resolution code reading with a 5 Megapixel resolution and adjustable optical focus. Perfect for industrial automation and quality control, this sensor supports various code types and features a robust IP65-rated housing, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable (manual)
- Illumination: Ordered separately as accessories
- Feedback spot: Green LED (530 nm ±15 nm), Red LED (660 nm ±20 nm)
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Lens: C-mount, focal lengths 8 mm, 12 mm, 16 mm, 25 mm (ordered separately)
- Scanning frequency: 30 Hz at 5 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet
- Supply voltage: 24 V DC ±20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and related standards
- MTBF: 100,000 hours
- Interfaces: Ethernet (10/100/1000 Mbit/s), EtherNet/IP™, CAN, Serial RS-232/422, USB 2.0, PROFINET
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 5 Megapixel resolution (2464 x 2048 px)
- Supports 1D, 2D, and stacked code types including QR, Data Matrix ECC200, PDF417
- Multiple interface options including Ethernet, EtherNet/IP™, CAN, Serial (RS-232, RS-422), USB, PROFINET
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Laser alignment aid with Class 1 laser compliance
- High scanning frequency of 30 Hz at 5 megapixels resolution
- Wide working range from 500 mm to 3000 mm
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading
- Industrial automation and quality control
- Barcode and 2D code scanning in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 24 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MCXXXAF0SXXXX sensor is available for immediate purchase, ideal for industrial indoor barcode scanning and automation applications.
