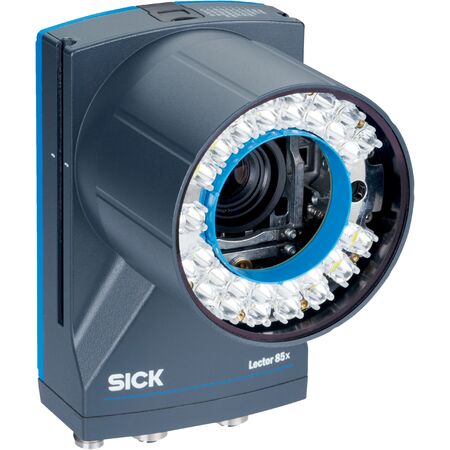

SICK V2D8505R-1MEMEXAF2SXXXX Industrial Code Reader | 5 Megapixel Resolution | Integrated Red LED Illumination | IP65 Rated | by SICK
The SICK V2D8505R-1MEMEXAF2SXXXX Industrial Code Reader features a high-resolution 5 Megapixel sensor and integrated red LED illumination, making it perfect for indoor industrial applications requiring precise code reading. With a robust IP65 rated aluminum housing and multiple connection types, this sensor ensures reliable performance in various environments, enhancing automation and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Illumination: Integrated red LED, 660 nm ± 20 nm
- Number of LEDs: 32
- Aperture angle: 31°
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Focal length: 25 mm
- Aperture: 5.6
- Scanning frequency: 30 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin, 8-pin)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 975 g without lens and cables
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 5 Megapixel sensor resolution (2464 px x 2048 px)
- Integrated red LED illumination at 660 nm wavelength
- 32 LEDs with 31° aperture angle for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Green and red visible LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant
- 25 mm focal length lens with aperture 5.6
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Code resolution ≥ 0.1 mm with working range 500 mm to 2400 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC with typical power consumption of 27 W
- Aluminum die cast housing with anthracite gray color
- IP65 rated enclosure with scratch-proof glass window
- Conformance Class B for safety-related parameters
- Supports 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- Multiple industrial network interfaces: Ethernet, EtherNet/IP™, PROFINET, CAN, Serial, USB
- Robust ambient data compliance including EMC, vibration, shock resistance
- Operating temperature range 0 °C to +50 °C, storage -20 °C to +70 °C
- Web server operator interface and SOPASair configuration software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial applications requiring high-resolution code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MEMEXAF2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode reading and automation applications.
