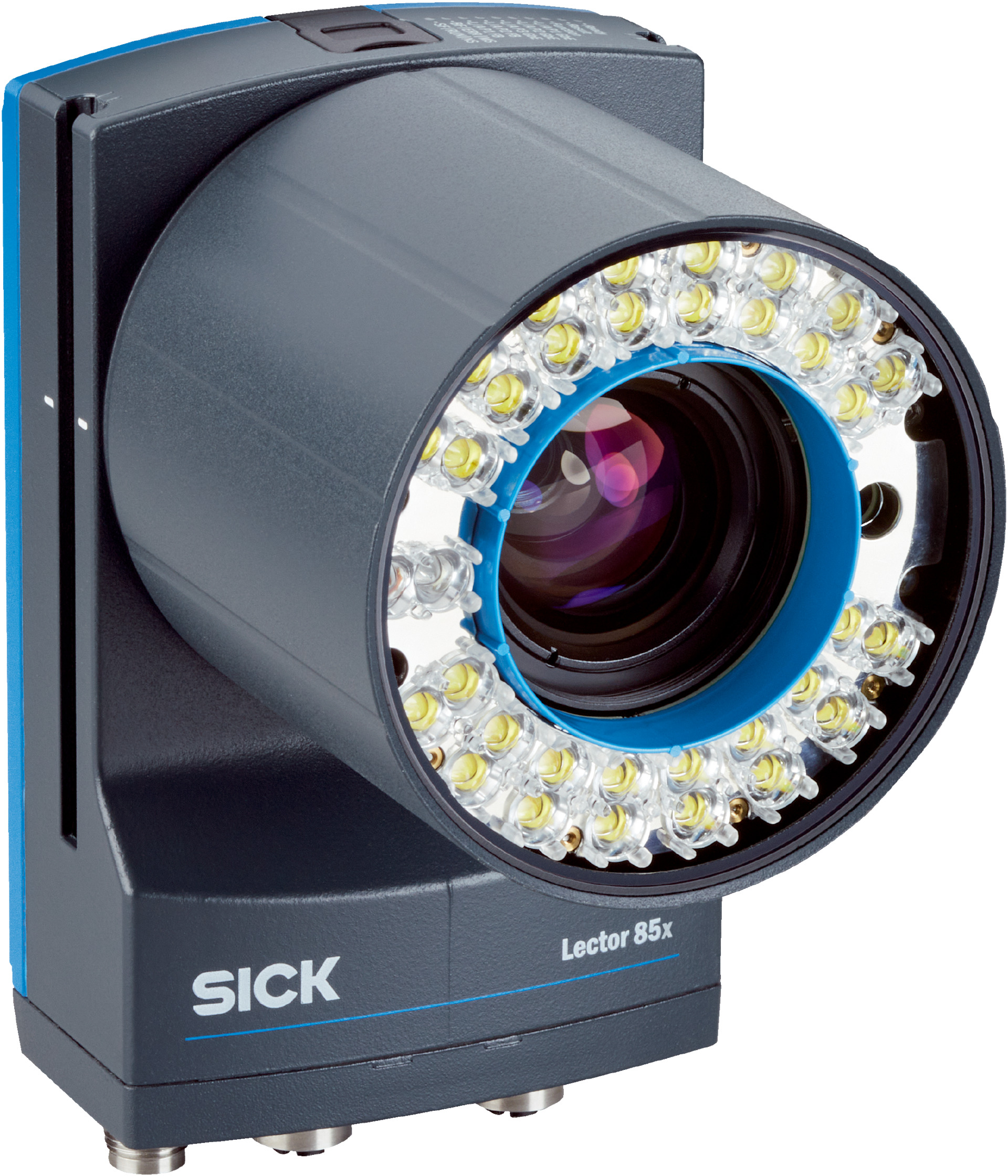

SICK V2D8505R Barcode Scanner | 5MP CMOS Sensor | Adjustable Focus | IP65 Rated | by SICK
The SICK V2D8505R Barcode Scanner features a 5MP CMOS sensor with a resolution of 2464 x 2048 px, making it perfect for indoor industrial automation and quality control applications. With adjustable manual optical focus and integrated white LED illumination, this scanner reads 1D and 2D codes, including QR and Data Matrix, ensuring reliable performance in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Optical focus: Adjustable manual
- Lens: C-mount, 8 mm focal length, aperture 1.85 to 16
- Scanning frequency: 30 Hz at 5 megapixels
- Readable codes: 1D, 2D, Stacked including Code 128, QR, Data Matrix ECC200, PDF417
- Interfaces: 3x M12 8-pin female (Gigabit Ethernet), 1x M12 17-pin male (power, CAN, serial, I/O), 1x M12 5-pin male (power, CAN), USB 2.0
- Supply voltage: 24 V DC ±20%
- Power consumption: Typical 24 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast, anthracite gray
- Window material: 2 mm thick scratch-proof glass
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 and laser class 1 compliant with safety standards
- C-mount lens with 8 mm focal length and aperture range 1.85 to 16
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Reads 1D, 2D, and stacked barcodes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
- Supports image and data storage via external FTP and micro SD card
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial automation
- Barcode and 2D code reading in manufacturing
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 61010.1 Electrical Equipment Safety Standards
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission minimizing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MCIBXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode and 2D code reading applications.
