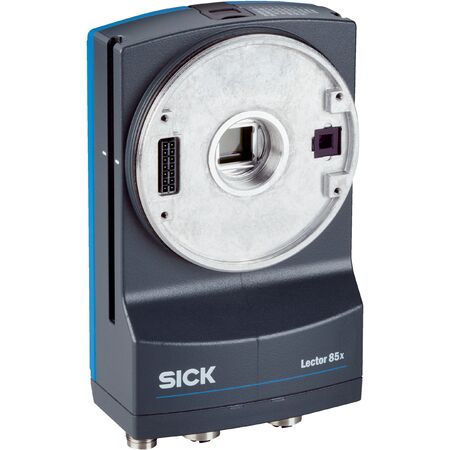

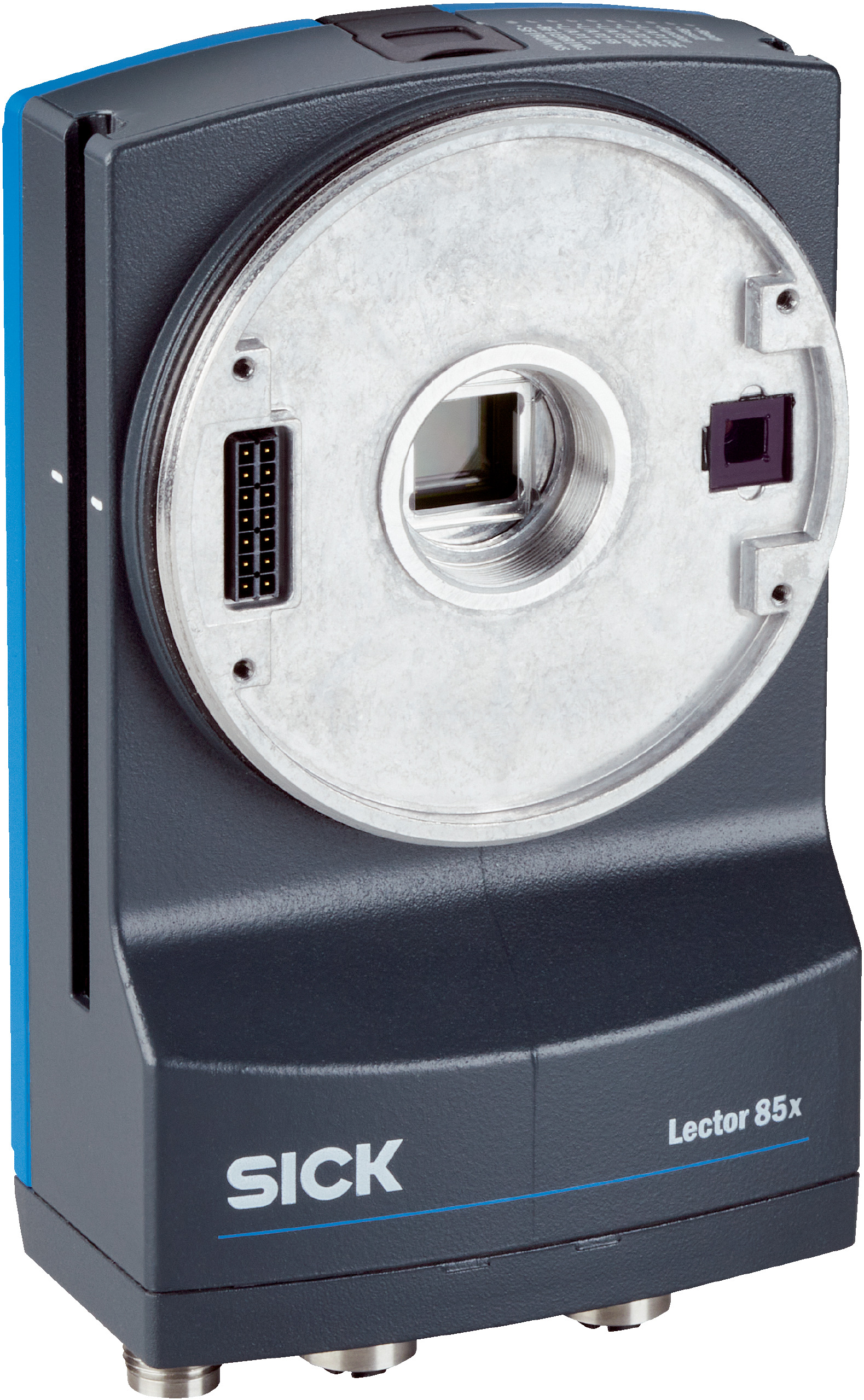

SICK V2D8509R Barcode Scanner | 9MP CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK V2D8509R Barcode Scanner features a 9MP CMOS monochrome sensor and adjustable optical focus, making it perfect for indoor industrial barcode scanning. With support for 1D, 2D, and stacked barcode types, this robust scanner is designed for industrial automation and logistics, ensuring high performance and reliability in quality control and traceability applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 2176 px (9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Accessories ordered separately
- Feedback spot: Green LED (530 nm ±15 nm), Red LED (660 nm ±20 nm)
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount, focal lengths 12 mm, 16 mm, 25 mm (ordered separately)
- Scanning frequency: 20 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 8-pin)
- Supply voltage: 24 V DC ±20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and related standards
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 128, GS1, EAN, UPC, QR, Data Matrix, MaxiCode, Aztec, PDF417
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Optical indicators: 12 LEDs for status and feedback
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Data storage: FTP image and data storage
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Vibration and shock resistance: EN 60068-2 series
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- Supports 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- Laser alignment aid with Class 1 laser safety
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces: Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- High scanning frequency of 20 Hz
- Configurable digital inputs and outputs
- Web server operator interface and SOPASair configuration software
- Micro SD card slot for parameter cloning and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure compliance and safety.
Applications
- Indoor area barcode scanning
- Industrial automation and logistics
- Quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with 24 V DC supply and low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCXXXAL0SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
