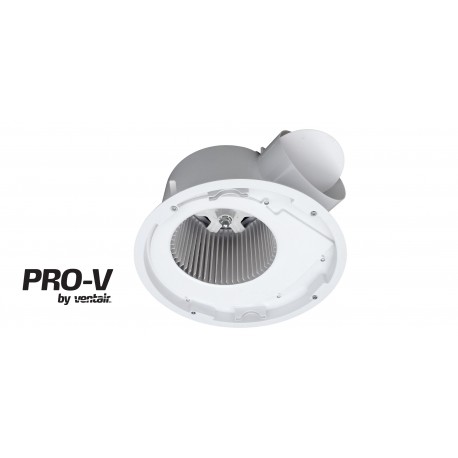

Side Ducted Exhaust Fan Body 225mm 296mm Cut-out White Ventair
Ventair Airbus 225 premium side ducted exhaust fan body only, 296mm cut-out. Compatible with any Airbus 250 fascia. White.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Airbus 225 Motor Body, PVPX225 Exhaust Fan Body, Airbus 250 Compatible Exhaust Fan Motor
Technical Specifications
- Model: PVPX225
- Motor Size: 225mm
- Rated Voltage: 220–240V AC, 50Hz
- Motor Power: 45W
- Air Delivery: 290m³/h
- Noise Level: 40dB(A)
- Duct Outlet: 150mm diameter
- Cut-out Size: 296mm round
- Minimum Installation Depth: 220mm
- Ingress Protection: IPX4
- Motor Type: Japanese ball-bearing motor
- Installation: Plug and lead
- Duct Run Suitability: 0–3m
- Configuration: Exhaust fan body only; fascia sold separately
- Compatibility: Ventair Airbus 250 fascias
- Included: Back-draft stopper
- Dimensions (H x L x W): 197mm x 328mm x 328mm
- Weight: 3 kg
Key Features
- Premium side-ducted exhaust fan body for the Ventair Airbus modular system
- Compatible with any Ventair Airbus 250 fascia
- High airflow performance for bathrooms, laundries and utility areas
- Japanese ball-bearing motor designed for extended service life
- 150mm side duct outlet for direct ducted ventilation
- Integrated back-draft stopper helps reduce unwanted air leakage
- Super-low-profile body suitable for multi-storey applications
- White finish
- Fascia and decorative grille sold separately
Professional Installation Requirements
- Installation and electrical connection must be completed by a licensed electrician in accordance with AS/NZS 3000, manufacturer instructions and applicable damp-area wiring requirements. Ducting should discharge to outside air and be installed without restrictions to airflow.
Applications
- Bathroom and ensuite ventilation
- Laundry and utility-room extraction
- Residential ceiling-mounted exhaust systems
- Multi-storey residential ventilation
- Replacement or retrofit installations using an existing Airbus 250 fascia
Standards & Compliance
- AS/NZS 3000: Electrical installation requirements for fixed wiring and electrical connections
- AS/NZS 60335.2.80:2025: Applicable safety requirements for household and similar electric fans
Environmental Benefits
- Back-draft stopper helps reduce unwanted air leakage when the fan is not operating
- Ball-bearing motor construction supports longer service life and may reduce replacement waste
- Electrical components can be directed to an approved e-waste recycling pathway at end of life
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years of parts and labour support followed by an additional three-year replacement warranty on the motor, subject to Ventair terms. Commercial use is limited to a maximum one-year warranty and excludes in-home service.
Available Now
Available through authorised Ventair distributors in Australia.
