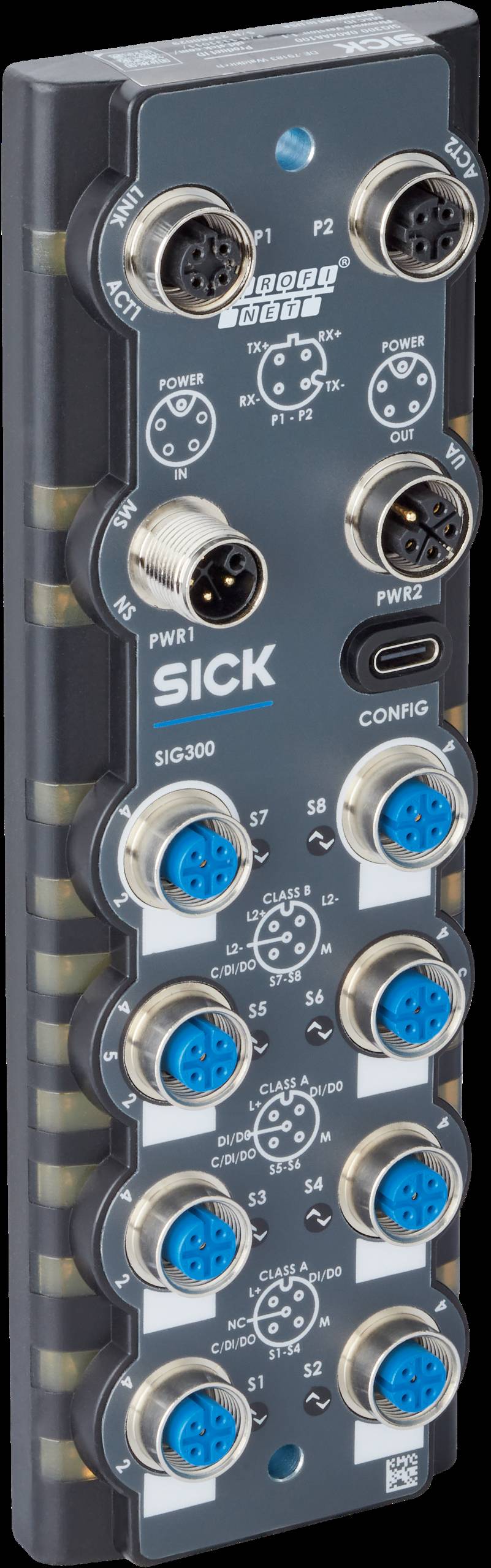

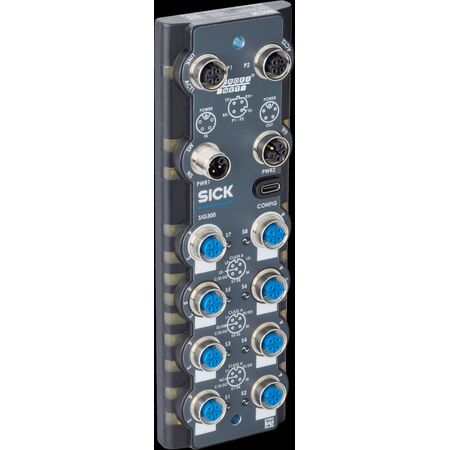

SIG300 IO-Link Master Gateway | 8 IO-Link Ports | IP67 Rated | Programmable Logic Editor | by SICK
The SIG300 IO-Link Master Gateway features 8 IO-Link input ports, making it perfect for integrating energy-intensive sensors in industrial automation systems. With robust Ethernet support including PROFINET, EtherNet/IP, and EtherCAT, this device is designed for seamless IIoT connectivity via REST API and MQTT. Its IP67 enclosure ensures durability in harsh environments, while the programmable logic editor allows for autonomous control, making it an ideal choice for factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SIG300 IO-Link Master Gateway | 8 IO-Link Ports | IP67 Rated | Programmable Logic Editor | by SICK
Brand: SICK
SKU: 1131011
Alternatively Known As: IO-Link Master Gateway, Industrial IO-Link Hub, Sensor Integration Gateway, SIG300 IO-Link Controller
Technical Specifications
- 8 IO-Link input ports (Class A/B)
- Communication interfaces: IO-Link, REST API, Ethernet, PROFINET, EtherNet/IP, EtherCAT
- Max power output: 16 A total, 4 A per port
- Galvanically isolated power supply pins for class B ports
- Programmable logic editor for autonomous control
- Integrated web server for configuration
- IIoT interfaces: REST API and MQTT
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 120mm x 150mm
- Weight: 1.2 kg
Key Features
- 8 IO-Link input ports (Class A/B) supporting energy-intensive sensors
- Supports Ethernet interfaces: PROFINET, EtherNet/IP, and EtherCAT
- IIoT interfaces including REST API and MQTT for flexible integration
- Galvanically isolated power supply pins for class B ports
- Maximum 16 A power output with up to 4 A per port
- Programmable logic editor for autonomous task execution
- Configuration and parameterization via integrated web server
- Enclosure rated IP67 for robust industrial use
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation systems requiring IO-Link device integration
- Factory automation with PROFINET, EtherNet/IP, or EtherCAT networks
- IIoT environments needing REST API and MQTT connectivity
- Automated process control with programmable logic tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient automation reducing energy consumption
- Supports IIoT connectivity for optimized resource management
- Durable IP67 enclosure reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK SIG300 Sensor Integration Gateway is available now for immediate purchase. Ideal for industrial automation and IIoT system integration.
