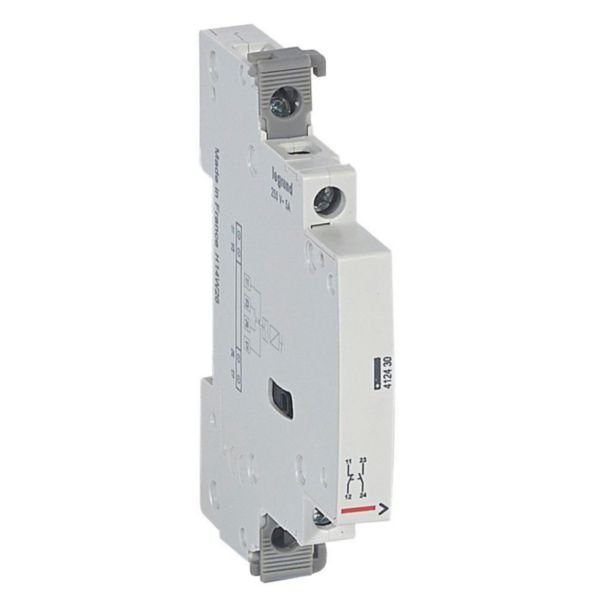

Signalling Auxiliary NO + NC for Legrand 2 Modules | 25A Contactor | 250V AC Rated | Compact Design | @EA of 1 | by Legrand
The Signalling Auxiliary NO + NC for Legrand 2 Modules is designed for seamless integration with 25A contactors, providing reliable auxiliary signaling in electrical control panels and industrial automation systems. With a compact design and easy mechanical association, this device ensures efficient operation and compliance with AS/NZS 3000 standards, making it ideal for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Signalling Auxiliary NO + NC for Legrand 2 Modules | 25A Contactor | 250V AC Rated | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412430
Alternatively Known As: Auxiliary contactor switch, NO NC signalling auxiliary, Legrand CX3 auxiliary contact
Technical Specifications
- Rated switch current: 5 A
- Rated voltage: 250 V AC
- Number of normally open contacts: 1
- Number of normally closed contacts: 1
- Width: 0.5 modular spacing (9 mm)
- Height: 84.5 mm
- Depth: 67 mm
- Suitable for max current main contact unit: 25 A
- Suitable for max number of poles main contact unit: 4
- Dimensions (H x L x W): 85mm x 67mm x 9mm
- Weight: 0.1 kg
Key Features
- Easy mechanical association on the left side of the contactor without tools
- Compact design, only 0.5 module wide
- Maximum of 2 auxiliaries per contactor
- One normally open (NO) and one normally closed (NC) contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to avoid risk of electric shock or fire.
Applications
- Electrical control panels
- Industrial automation systems
- Switchboards and power cabinets requiring auxiliary signalling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage
- Durable construction extends product life and reduces waste
Warranty Information
Standard Legrand warranty applies. Warranty void if product is opened or modified by unauthorized personnel.
Available Now
The Legrand Signalling Auxiliary NO + NC for 2 Modules 25A Contactor CX³ is available now for immediate purchase. Ideal for use in switchboards and power cabinets requiring auxiliary signalling.
