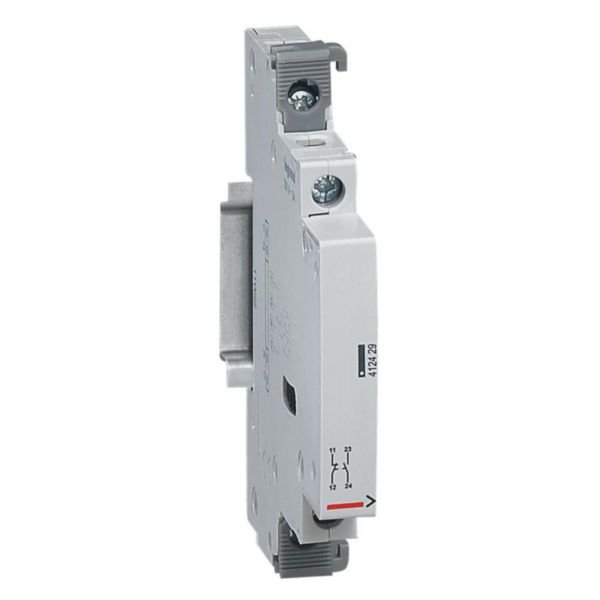

Signalling Auxiliary NO + NC for Legrand CX³ Relay | 5A Rated Current | 250V AC | Compact Design | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 412429
$167.60 List price: $208.90
1 EA ($167.60 per EA)
+ −
30 Days Return Delivery Options
The Signalling Auxiliary NO + NC for Legrand CX³ Relay is designed for seamless integration with latching relays or contactors, featuring a compact design that occupies only 0.5 modular spacings. With a rated switch current of 5A at 250V AC, it's perfect for residential and small commercial electrical panels, ensuring reliable auxiliary signalling for control circuits.
Technical Specifications
  • Device fitting: Contactor/relay
  • Function: Auxiliary switch
  • Width: 0.5 modular spacings (9 mm)
  • Number of normally open contacts: 1
  • Number of normally closed contacts: 1
  • Rated switch current: 5 A
  • Rated voltage: 250 V AC
  • Suitable for max. number of poles main contact unit: 4
  • Suitable for max. current main contact unit: 16 A
  • Voltage type: AC
  • Dimensions (H x L x W): 85mm x 67mm x 9mm
  • Weight: 0.1 kg
Key Features
  • Easy mechanical association on the left side of the latching relay or contactor without tools
  • Compact design, only 0.5 module wide
  • Includes one normally open (NO) and one normally closed (NC) contact
  • Rated switch current of 5A at 250V AC
  • Compatible with CX³ latching relays or contactors up to 16A and 4 poles
Professional Installation Requirements
  • Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
  • Residential and small commercial electrical panels
  • Control circuits requiring auxiliary signalling for latching relays or contactors
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Compact design reduces material usage
  • Supports efficient electrical control systems to optimize energy use
Warranty Information

Legrand standard warranty applies; typically 2 years against manufacturing defects.

Available Now

Available for immediate purchase, ideal for residential and small commercial panel control applications.

F01326EN-00 (F01326EN-00.pdf, 449 Kb) [Download]

F01326FR-00 (F01326FR-00.pdf, 442 Kb) [Download]

LE01996AE (LE01996AE.pdf, 1,951 Kb) [Download]

ex223001_0095 (ex223001_0095.pdf, 49 Kb) [Download]

ex223001_0096 (ex223001_0096.pdf, 271 Kb) [Download]

ex223001_0094 (ex223001_0094.pdf, 60 Kb) [Download]
