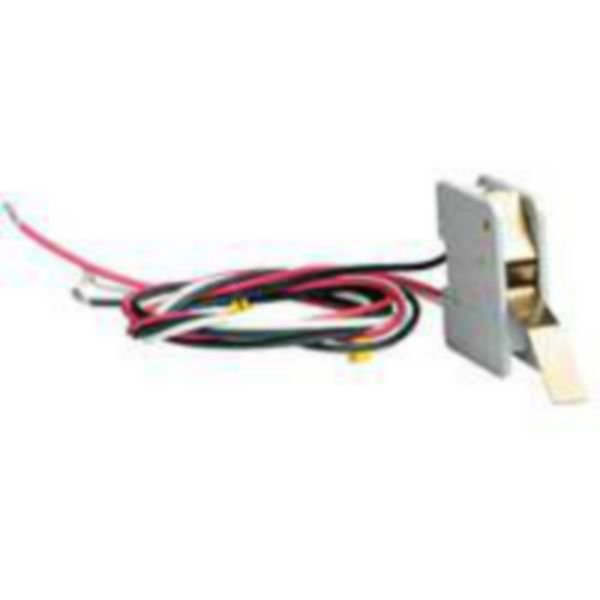

Signalling Contact for DPX 250/1600 | Clip-On Installation | Single Change-Over Contact | by Legrand
The signalling contact for DPX 250/1600 is designed for seamless integration with the Debro-lift mechanism, providing clear indication of plugged-in or drawn-out status. Ideal for switchboards and power cabinets, this clip-on model features a single change-over contact and screw connection type, ensuring reliable performance in electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of change-over contacts: 1
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Rated operational current Ie at AC-15, 230 V: 3 A
- Electric connection type: Screw connection
- Mounting method: Clip-on
- Dimensions (H x L x W): 40mm x 30mm x 50mm
- Weight: 0.2 kg
Key Features
- Designed for DPX³ 1600 draw-out version with Debro-lift mechanism
- Signalling contact indicates plugged-in or drawn-out status
- Single change-over contact
- Screw connection type
- Clip-on model for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DPX circuit breakers and electrical safety standards.
Applications
- Used in switchboards and power cabinets
- Compatible with DPX 250/1600 circuit breakers
- Ideal for electrical distribution and protection systems requiring signalling of circuit breaker status
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances safety and operational efficiency in electrical systems, reducing risk of faults and downtime
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical distribution panels and switchboard applications requiring circuit breaker status signalling.
