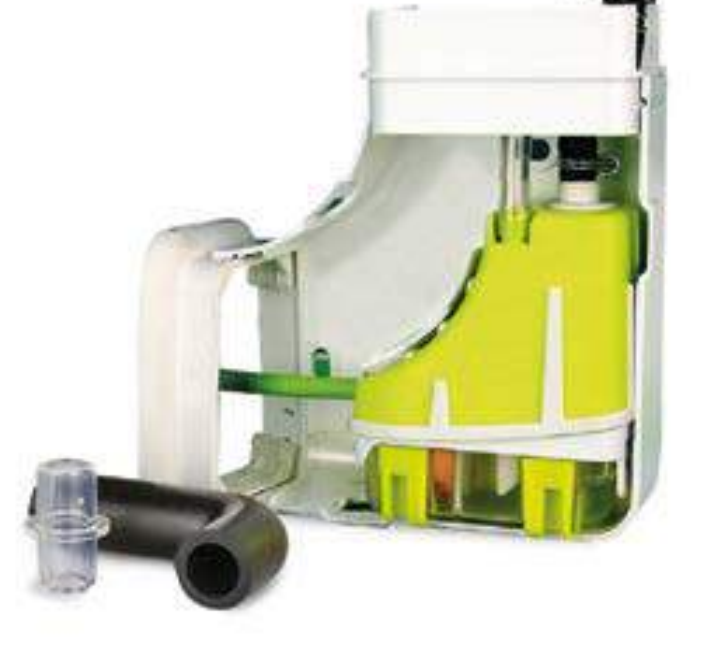

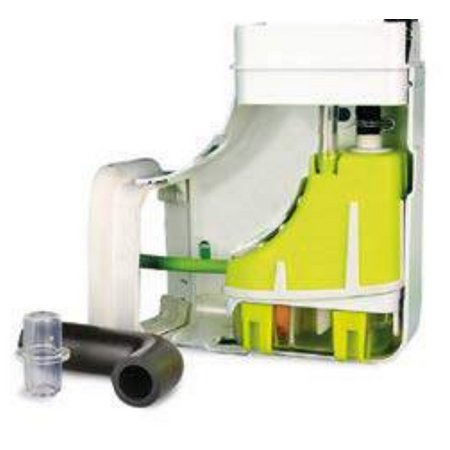

Silent Mini Lime Replacement Pump | 12L/h Max Flow Rate | 20 dB(A) Noise Level | IP24 Rated | by Aspen Pumps
The Silent Mini Lime Replacement Pump is designed for efficient condensate removal in commercial applications, featuring a maximum flow rate of 12L/h and an ultra-quiet operation at just 20 dB(A). Ideal for high wall split systems and boiler condensate management, this self-priming pump ensures reliable performance with thermal protection and an IP24 rating for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Silent Mini Lime Replacement Pump | 12L/h Max Flow Rate | 20 dB(A) Noise Level | IP24 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3322
Alternatively Known As: Silent Mini Lime Pump, Aspen Condensate Pump, Silent Condensate Removal Pump, Mini Lime Replacement Pump
Technical Specifications
- Max flow rate: 12L/h at 0m head
- Maximum recommended head: 10m
- Noise level: 20 dB(A) at 1m
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated non-continuous operation
- Maximum unit output: 16kW / 54,000 Btu/h
- Maximum water temperature: 40°C / 104°F
- Discharge tube diameter: 6mm ID
- IP Protection rating: IP24
- Safety switch: 5.0A N.C. / N.O.
- Thermal protection included
- Self-priming pump
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Anti-vibration damper for quiet operation
- Pump fits in trunking elbow for compact installation
- LEDs provide visual operating feedback
- Suitable for up to 16kW / 54,000 Btu/h output
- Left or right installation with a range of trunking systems
- Self-priming pump with thermal protection
- Class II appliance with IP24 protection rating
- Safety switch rated 5.0A N.C. / N.O.
Professional Installation Requirements
- Professional installation by a qualified technician or plumber is recommended to ensure correct setup and compliance with safety standards.
Applications
- Commercial boiler condensate removal
- High wall split system condensate management
- Silent pump applications where noise reduction is critical
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy efficient operation reduces power consumption
- Quiet operation minimizes noise pollution in commercial environments
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Silent Mini Lime Replacement Pack Pump Only is available now for immediate purchase. Ideal for commercial boiler condensate removal and silent pump applications.
