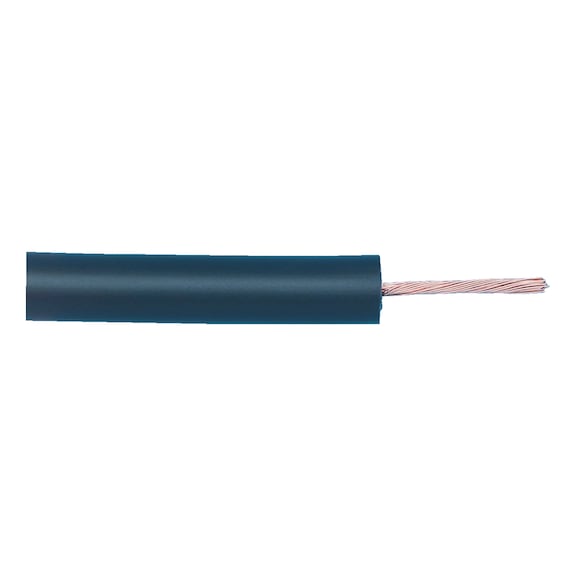

Silicone Ignition Line | Reinforced Insulation | 10,000V Rating | High Temp Resistance | @15 Meter | by Wurth
The Silicone Ignition Line is designed for automotive and industrial ignition systems, featuring reinforced silicone insulation and a high voltage rating of 10,000V. With a temperature range of -60 to 180 °C, this ignition line ensures reliable performance in demanding environments, making it ideal for high temperature electrical insulation and industrial machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Silicone Ignition Line | Reinforced Insulation | 10,000V Rating | High Temp Resistance | @15 Meter | by Wurth
Brand: Wurth
SKU: 7701144
Alternatively Known As: Silicone ignition wire, ignition cable, high voltage ignition line, silicone ignition lead
Technical Specifications
- Wire cross section: 1 mm²
- Colour: Black
- Nominal voltage: 10000 V/DC
- Outer diameter: 7.0 mm
- Temperature range: -60 to 180 °C
- Impulse peak voltage/test voltage: 20 kV
- Fine wire, tin-plated copper strand
- Reinforced core insulation on silicone basis
- Dimensions (H x L x W): 7mm x 15000mm x 7mm
- Weight: 0.5 kg
Key Features
- Reinforced silicone-based wire insulation
- Fine wire, tin-plated copper strand
- Impulse peak voltage/test voltage: 20 kV
- High temperature resistance from -60 to 180 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure safety and compliance with electrical standards.
Applications
- Automotive ignition systems
- High temperature electrical insulation
- Industrial machinery requiring high voltage ignition wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable silicone insulation reduces need for frequent replacements, minimizing waste
- High temperature tolerance improves energy efficiency and safety in ignition systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Silicone Ignition Line VEHWRE IGNIT SILICONE REEL BLACK 10SMM 15 Meter is available now for immediate purchase. Ideal for automotive and industrial ignition applications requiring high voltage and temperature resistance.
