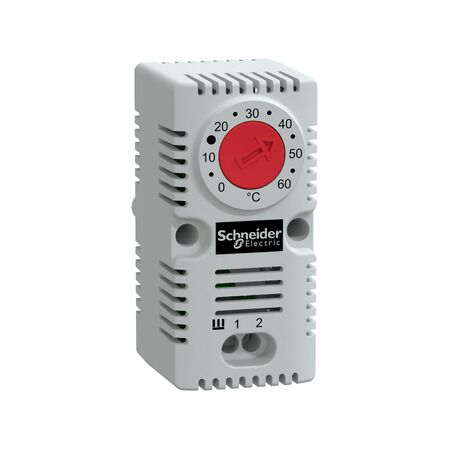

Simple Thermostat 250V 0-60°C Range Clipsal

BRAND: Clipsal
SKU: SCHNSYCCOTHC
$101.20 List price: $126.10
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Simple Thermostat Range features 250V AC, 15A and 100000 cycles. Temperature setting range: 0 to 60 °C. Ideal for temperature control in HVAC systems.
Technical Specifications
  • Input Voltage: 250V AC
  • Maximum Switching Capacity: 15A (resistive) at 250V AC
  • Service Life: 100,000 cycles
  • Hysteresis: 7 K +/- 0.4K
  • IP Rating: IP20
  • Dimensions (H x L x W): 68mm x 44mm x 33mm
  • Weight: 0.1 kg
Key Features
  • Temperature setting range: 0 to 60 °C
  • Bimetal sensor with NC contact type
  • Electrical connection via 4 terminals (2.5mm²)
  • Mounting mode compatible with 35mm DIN rail
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Temperature control in HVAC systems
  • Commercial: Office buildings, warehouses
Standards & Compliance
  • Complies with relevant safety and performance standards.
Environmental Benefits
  • Self-extinguishing material conforms to UL94 (material V0)
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The ClimaSys Simple Thermostat is available now for immediate purchase. Ideal for industrial and commercial temperature control applications.

NSYCCOTHC (NSYCCOTHC, 209 Kb) [Download]
