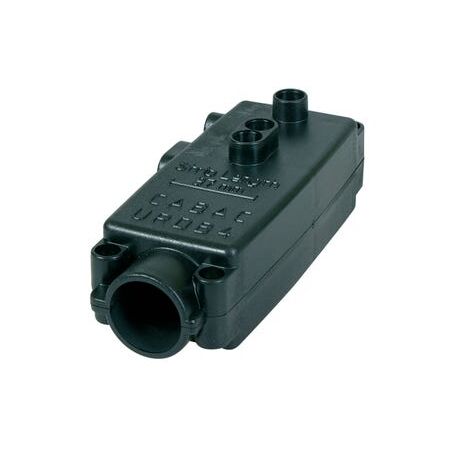

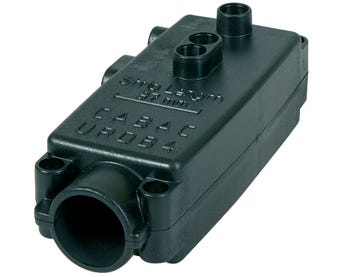

Single Cable Bolted Lug Cover | 1000V Rated | Fingerproof & Impact Resistant | 4 Ports for 25mm² by Cabac
The Cabac Single Cable Bolted Lug Cover is a durable, easy-to-install URD cover system designed to protect and insulate single, looped, or 3-way cable terminations in electrical power connectivity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Cable Bolted Lug Cover
Brand: Cabac
SKU: URDCL1
Alternatively Known As: URD Cable Bolted Lug Cover, Single Cable Lug Cover, URD Connection Cover, Cable Termination Cover
Technical Specifications
- Material: Glass filled nylon
- Voltage rating: Tested to 1000 volts for electrical safety
- Cable ports: 4 ports for max 25 mm² cable, 2 ports for max 50 mm² cable
- Design: Fingerproof and impact resistant
- Installation: Front access cable ports with strip length markings
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- Three cover options for single, looped, or 3-way cable arrangements
- Each phase terminated separately within its own cover to simplify cable tailoring
- Reversible cover with tolerance for connector misalignment
- Electrically safe fingerproof design tested to 1000 volts
- Manufactured from glass filled nylon for high impact resistance
- Front access cable ports: 4 ports for up to 25 mm² cable, 2 ports for up to 50 mm² cable
- Designed to hold cable connection grub screws securely
- Strip length information clearly marked on the cover
- Allows safe installation of live services using insulated allen keys
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection security.
Applications
- Electrical power connectivity for URD bolted lugs
- Protection and insulation of single, looped, or 3-way cable terminations
- Suitable for use in electrical pillars and junction boxes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable glass filled nylon construction reduces need for frequent replacements
- Protects electrical connections to prevent faults and energy loss
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Single Cable Bolted Lug Cover is available for immediate purchase, ideal for electrical power connectivity and pillar termination applications.
