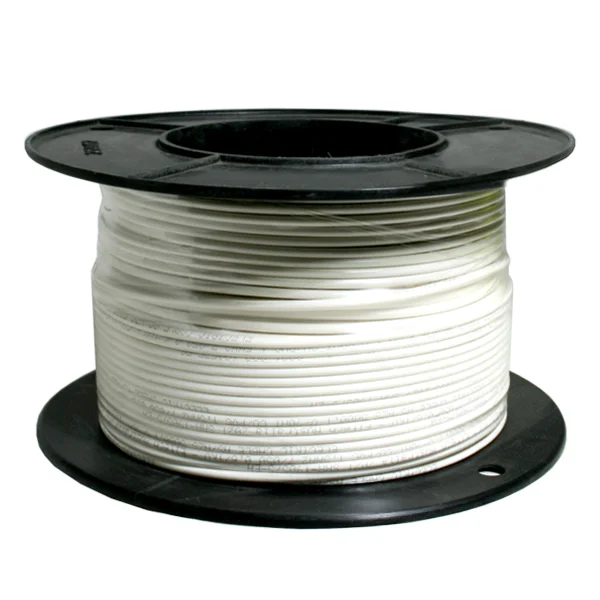

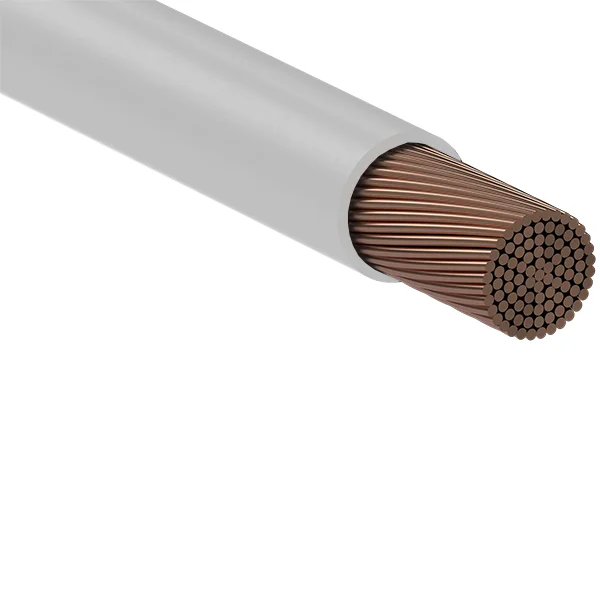

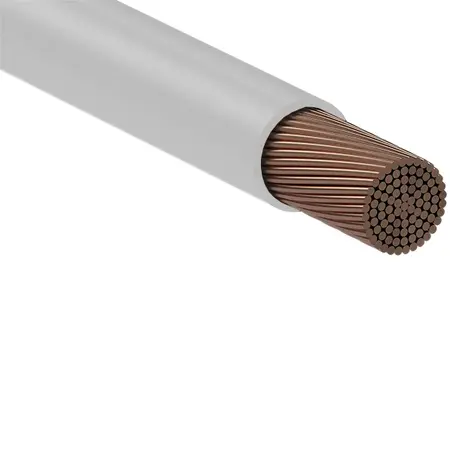

Single Core Flexible Wire 0.5mm LSZH | 0.6/1kV Voltage Rating | Flexible Design | White | Per 100m by Eltech
Single core flexible wire with 0.5mm² conductor size and LSZH insulation—ideal for electrical wiring in control panels. Built for industrial and commercial applications, it offers enhanced safety with low smoke emission and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Core Panel Flexible Wire 0.5mm LSZH 0.6/1kV White
Brand: Eltech
SKU: PW0005.5
Alternatively Known As: Single Core Flexible Wire 0.5mm LSZH, Panel Flex Wire 0.5mm, Low Smoke Zero Halogen Wire 0.5mm
Technical Specifications
- Conductor Size: 0.5mm²
- Insulation Type: Low Smoke Zero Halogen (LSZH)
- Voltage Rating: 0.6/1kV
- Colour: White
- Drum Length: 100 meters
- Dimensions (H x L x W): 2mm x 100000mm x 2mm
- Weight: 0.05 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety
- Voltage rating of 0.6/1kV suitable for power applications
- Flexible single core wire for easy installation
- White colour for easy identification
Professional Installation Requirements
- Installation should be performed by a licensed electrician following AS/NZS 3000 wiring rules.
Applications
- Electrical wiring in control panels
- Power distribution in industrial and commercial installations
- General purpose flexible wiring in low voltage applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and corrosive gases in case of fire, improving environmental and user safety
Warranty Information
Warranty as per Eltech standard terms and conditions.
Available Now
The Eltech Single Core Panel Flexible Wire 0.5mm LSZH 0.6/1kV White is available now for immediate purchase. Ideal for electrical panel wiring and power cable installations.
