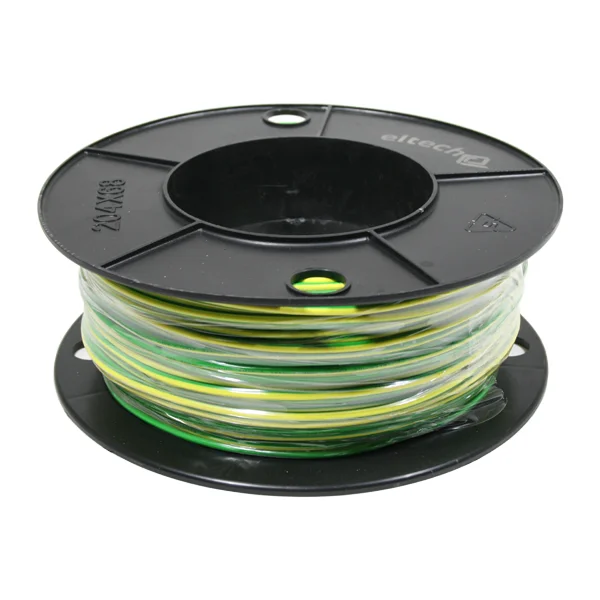

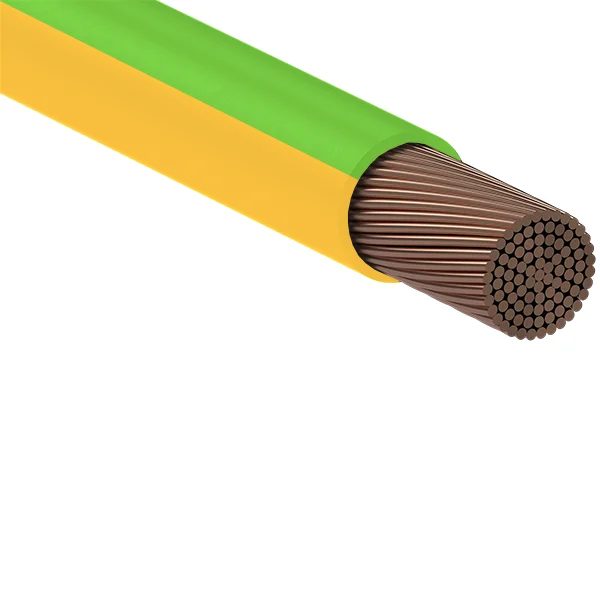

Single Core Flexible Wire 0.75mm LSZH | 0.6/1kV Voltage | Green/Yellow Earth | Flexible Design | Per 100m by Eltech
Single core flexible wire with 0.75mm LSZH insulation and 0.6/1kV voltage rating—ideal for electrical panel wiring and earth grounding. Built for safety and easy installation, featuring green/yellow color coding for earth conductor identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Core Panel Flexible Wire 0.75mm LSZH 0.6/1kV Green/Yellow Earth
Brand: Eltech
SKU: PW0007.0
Alternatively Known As: Earth Wire, Panel Earth Cable, Flexible Earth Conductor, LSZH Earth Wire
Technical Specifications
- Conductor Size: 0.75mm²
- Insulation Type: Low Smoke Zero Halogen (LSZH)
- Voltage Rating: 0.6/1kV
- Colour: Green/Yellow (Earth)
- Drum Length: 100 meters
- Flexible single core wire suitable for panel wiring
- Dimensions (H x L x W): 2mm x 100000mm x 2mm
- Weight: 0.05 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety
- Voltage rating of 0.6/1kV suitable for panel wiring
- Flexible single core wire for easy installation
- Green/Yellow colour coding for earth conductor identification
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and regulations.
Applications
- Electrical panel wiring
- Earth grounding in electrical installations
- Power distribution in residential, commercial, and industrial settings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and halogen emissions in case of fire
- Improves safety for occupants and reduces environmental impact during fire incidents
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Single Core Panel Flexible Wire 0.75mm LSZH 0.6/1kV Green/Yellow Earth is available now for immediate purchase. Ideal for electrical panel wiring and earth grounding applications.
