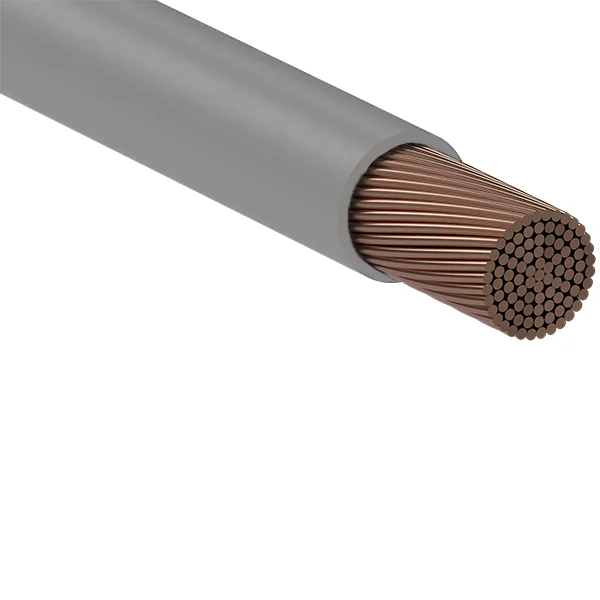

Single Core Flexible Wire 0.75mm LSZH | 0.6/1kV Voltage | Grey Color | Per 100m | Eltech
Single core flexible wire with 0.75mm conductor size and LSZH insulation—ideal for electrical panel wiring and power distribution. Built for safety and compliance, it features a 0.6/1kV voltage rating and is easy to install.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Core Panel Flexible Wire 0.75mm LSZH 0.6/1kV Grey
Brand: Eltech
SKU: PW0007.6
Alternatively Known As: Panel flexible wire, LSZH single core wire, 0.75mm flexible cable, low smoke zero halogen wire
Technical Specifications
- Conductor Size: 0.75mm²
- Insulation: Low Smoke Zero Halogen (LSZH)
- Voltage Rating: 0.6/1kV
- Colour: Grey

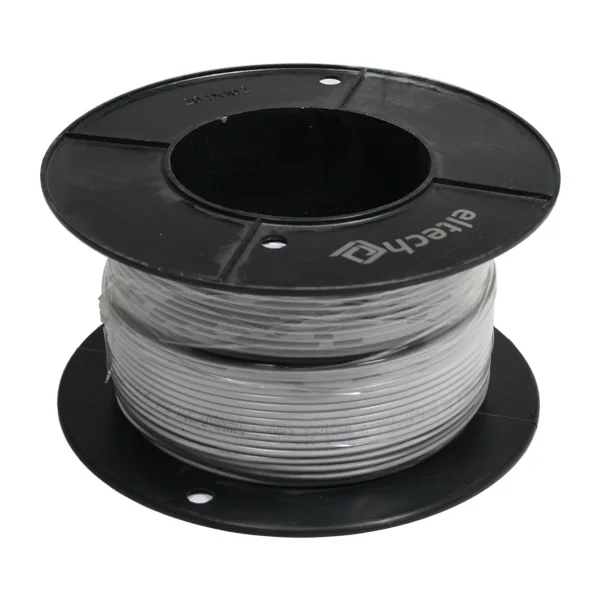

- Drum Length: 100 meters
- Dimensions (H x L x W): 5mm x 100000mm x 5mm
- Weight: 0.05 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety
- Voltage rating of 0.6/1kV suitable for power applications
- Flexible single core wire for easy installation
- Grey colour for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Electrical panel wiring
- Power distribution in control panels
- Internal wiring in electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and halogen emissions in case of fire, improving safety and environmental impact.
Warranty Information
Warranty as per Eltech standard terms and conditions.
Available Now
The Eltech Single Core Panel Flexible Wire 0.75mm LSZH 0.6/1kV Grey is available now for immediate purchase. Ideal for electrical panel wiring and power cable applications.
