Single Core Flexible Wire 1.5mm LSZH | 0.6/1kV Voltage | Blue/Red Insulation | Flexible Design | Per 100m by Eltech
Single core flexible wire with 1.5mm conductor size and 0.6/1kV voltage rating—ideal for electrical panel wiring and power distribution. Built for safety with low smoke zero halogen insulation, it’s perfect for residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

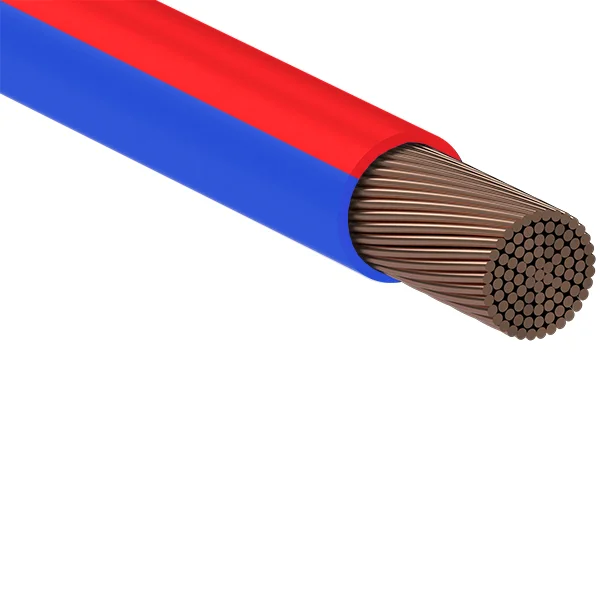

Product Name/Title: Single Core Panel Flexible Wire 1.5mm LSZH 0.6/1kV Blue/Red
Brand: Eltech
SKU: PW0015.2/4
Alternatively Known As: Panel flexible wire, LSZH single core cable, 1.5mm power cable, low smoke zero halogen wire
Technical Specifications
- Conductor Size: 1.5mm²
- Voltage Rating: 0.6/1kV
- Insulation: Low Smoke Zero Halogen (LSZH)
- Colour: Blue and Red
- Drum Length: 100 meters
- MOQ: 100 meter increments
- Dimensions (H x L x W): 5mm x 100000mm x 1500mm
- Weight: 0.1 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety
- Voltage rating of 0.6/1kV suitable for power applications
- Flexible single core wire for easy installation
- Available in blue and red colors for phase identification
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Electrical panel wiring
- Power distribution in residential and commercial buildings
- Control and instrumentation wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and corrosive gases in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Single Core Panel Flexible Wire 1.5mm LSZH 0.6/1kV Blue/Red is available now for immediate purchase. Ideal for electrical panel wiring and power distribution applications.
