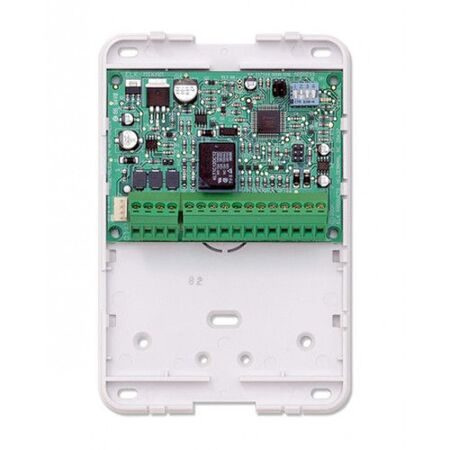

Single Door Access Module | 13.8 VDC | Wiegand Reader Compatible | Relay Output by Ness
Single door access module with 13.8 VDC operation and Wiegand reader compatibility—ideal for residential and commercial access control. Built for seamless integration with M1 and M1EZ8 panels, featuring relay output and supervised inputs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M1 SINGLE DOOR ACCESS MODULE
Brand: Ness
SKU: 101-246
Alternatively Known As: M1KAM, Access Control Module, Door Access Interface
Technical Specifications
- Operating Voltage: 13.8 VDC
- Current Draw: Less than 30 mA with minimum activity, 44 mA fully active
- Input for 26 bit Wiegand Reader
- Heavy Duty Form 'C' Relay Contacts for Switching Door Strike Power
- Low Current Outputs for Door Held Open Alarm, System Ready To Arm, and System Armed indications
- Supervised Inputs for RTE (Request To Exit) Button/Device and Door Status Sensor
- Four selectable Time settings for Request to Exit and Door Held Open
- Connections: Unpluggable Screw Terminals, 16 Position
- Dimensions (H x L x W): 162mm x 54mm x 108mm
- Weight: 0.5 kg
Key Features
- Single door access interface module for M1 and M1EZ8 Control Panels.
- Connects to the 4 wire keypad data bus.
- Supports up to 16 modules and controlled doors.
- Includes relay output with form 'C' dry contacts.
- Compatible with various door lock devices.
- Accepts 26-bit Wiegand format card swipe or proximity readers.
- Supervised inputs for request to exit button and door contact sensor.
- Multiple voltage outputs for alarm and system status indications.
- Universal surface mount plastic housing.
Professional Installation Requirements
- Professional installation is recommended for optimal integration with control panels.
Applications
- Access control for residential and commercial buildings
- Integration with M1 and M1EZ8 Control Panels
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient access control reduces the need for physical keys, enhancing security and convenience.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The M1 Single Door Access Module is available now for immediate purchase. Ideal for enhancing security in access control systems.
