Single Maglock Monitored 12/24VDC | 250kg Holding Force | Fail-Safe Design | Silent Operation | by Dicker Data

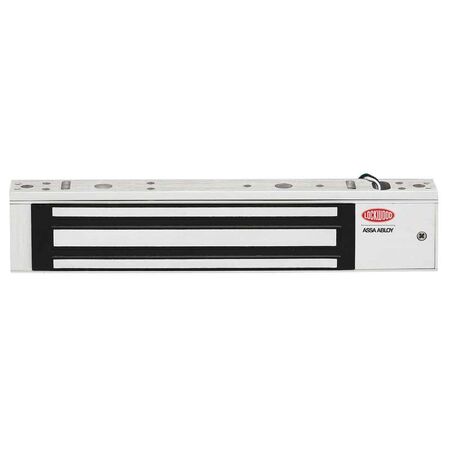

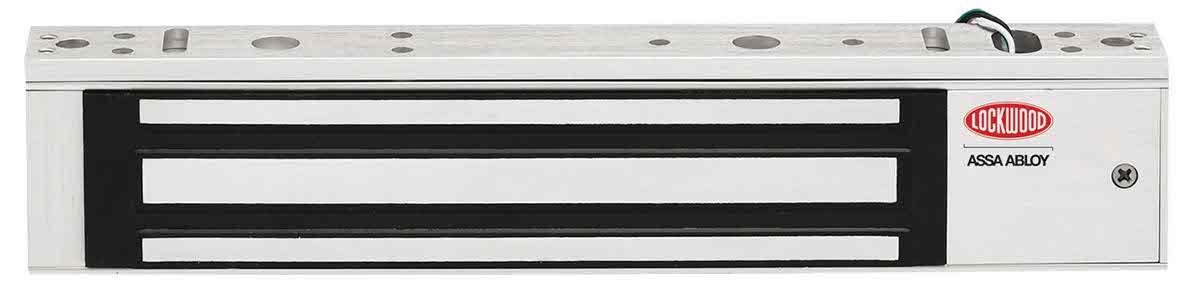

The LOCKWOOD EMZ4-SM Single Maglock is a monitored electromagnetic lock designed for high-security applications. With a holding force of 250kg to 280kg and dual voltage options of 12Vdc or 24Vdc, it ensures reliable access control for aluminum and glass doors. Its fail-safe feature allows for instant release when power is removed, making it ideal for both new installations and retrofits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Maglock Monitored 12/24VDC | 250kg Holding Force | Fail-Safe Design | Silent Operation | by Dicker Data
Brand: Dicker Data
SKU: 770300-012
Alternatively Known As: Single Electromagnetic Lock, EMZ4-SM Maglock, Monitored Maglock, Access Control Lock
Technical Specifications
- Holding Force: 250kg - 280kg
- Voltage: 12Vdc/24Vdc ±10%
- Current: 450mA @ 12Vdc, 225mA @ 24Vdc
- Monitoring: Hall-Effect/Bond sensing & Reed Switch
- Operating Temperature: -10 to 55 Degrees Celsius
- Operating Humidity: 0 - 95%

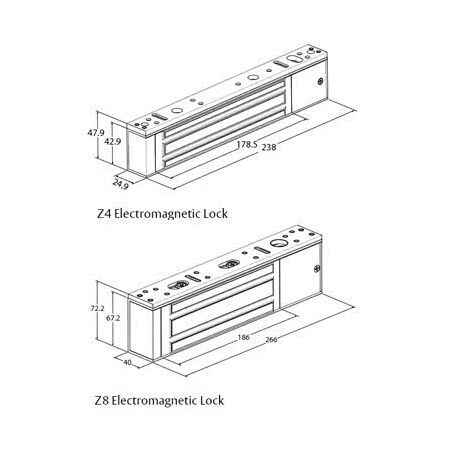

- Dimensions (H x L x W): 48mm x 27mm x 238mm
- Weight: 2.5 kg
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: 250kg - 280kg
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitoring: Reed Switch and Hall-Effect monitoring
- Instantaneous release: smart electronics eliminate residual magnetism
Professional Installation Requirements
- Professional installation by a qualified security or electrical technician is recommended to ensure proper mounting and electrical connections.
Applications
- Aluminium doors
- Glass doors
- IT Storage rooms
- Access control
- Surface mount for inswing and outswing doors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
Environmental Benefits
- Energy-efficient dual voltage operation reduces power consumption.
- Silent operation minimizes noise pollution.
Warranty Information
5 year warranty.
Available Now
The LOCKWOOD EMZ4-SM Single Maglock is available now for immediate purchase. Ideal for commercial and high-use door security applications.
