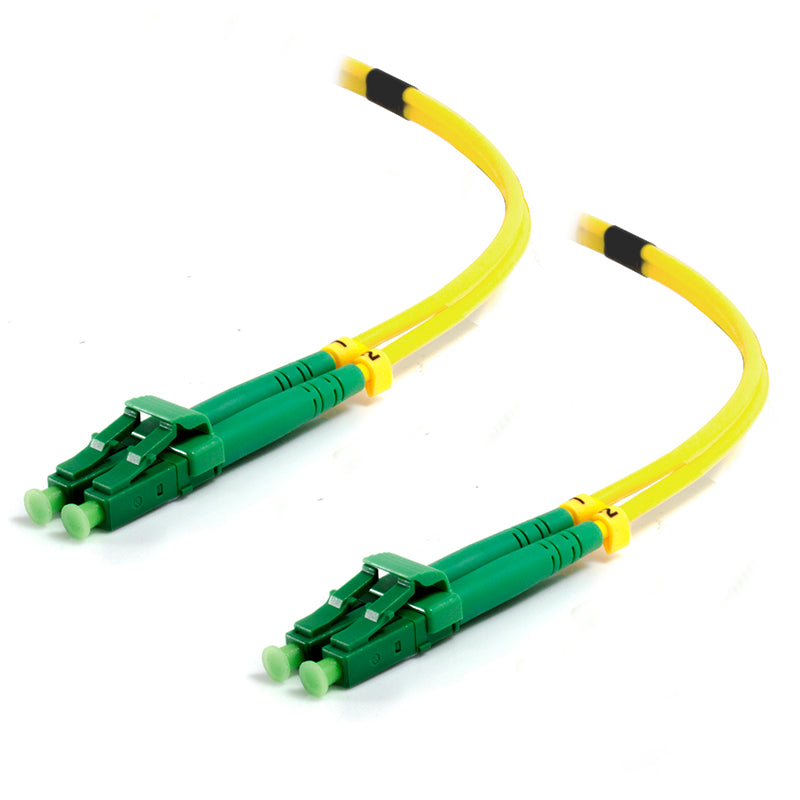

Single Mode Duplex LSZH Fibre Cable | 20m Length | 9/125 Microns | 100% Optically Tested | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance data transmission, featuring a 20m length and a 9/125 micron core diameter. Ideal for telecommunications networks and data centers, this cable is compliant with safety standards and has a Low Smoke Zero Halogen jacket to minimize toxic emissions in case of fire. With 100% optical testing and provided test reports, it ensures reliable connectivity for high-speed internet applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 20m Length | 9/125 Microns | 100% Optically Tested | by SERVEREDGE
Brand: SERVEREDGE
SKU: LCALCA-20-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, OS2 Duplex Fibre Cable, LSZH Fibre Cable, LC to LC Fibre Patch Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Fibre Standard: Compliant to fibre type B1.3 in IEC 60793-2-5 & G652d
- Jacket: Low Smoke Zero Halogen (LSZH)
- Length: 20 meters
- Connector Type: LC to LC Duplex
- 100% optically tested with test reports
- Dimensions (H x L x W): 5mm x 20000mm x 5mm
- Weight: 0.1 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
Professional Installation Requirements
- Installation by qualified IT or telecommunications professionals is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Telecommunications networks
- Data centers and server rooms
- High-speed internet connections
- Long-distance and high-performance data transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE 20m LCA-LCA Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available now for immediate purchase. Ideal for telecommunications, data centers, and high-speed network applications.
