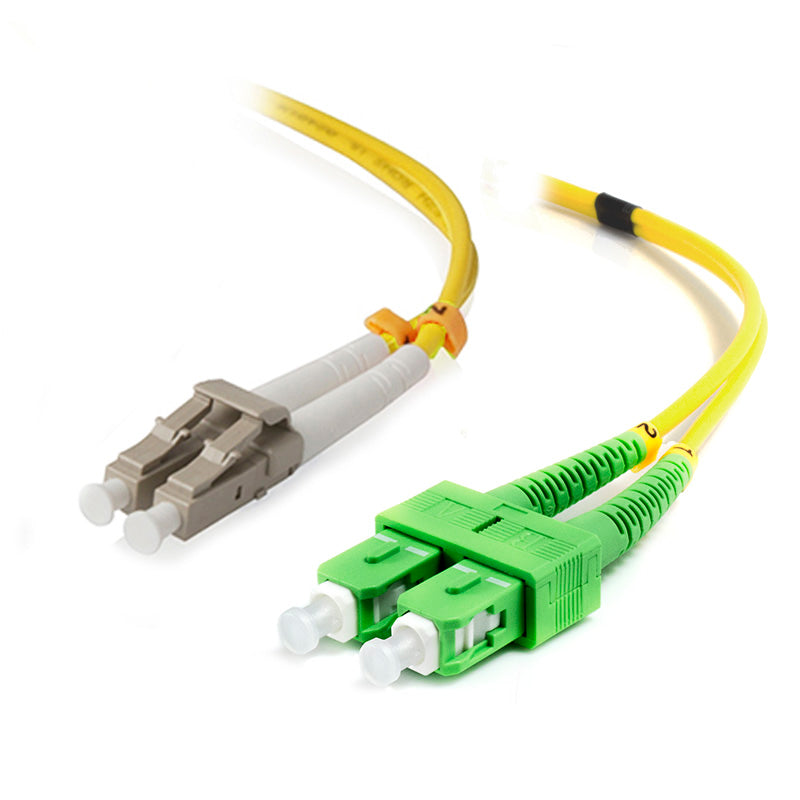

Single Mode Duplex LSZH Fibre Cable | 3m Length | 9/125 Microns | 100% Optically Tested | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance data transmission, featuring a 3m length and a core diameter of 9/125 microns. Ideal for telecommunications networks and data centers, this cable is equipped with a Low Smoke Zero Halogen jacket to minimize toxic emissions in case of fire. With 100% optical testing and compliance with industry standards, it ensures reliable connectivity for long-distance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 3m Length | 9/125 Microns | 100% Optically Tested | by SERVEREDGE
Brand: SERVEREDGE
SKU: SCALC-03-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, OS2 Duplex Fibre Cable, LSZH Fibre Patch Cable, 09/125 Fibre Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Jacket: Low Smoke Zero Halogen (LSZH)
- Standards Compliance: Fibre type B1.3 in IEC 6 793-2-5 & G652d
- Length: 3 meters
- Optically tested with test reports provided
- Dimensions (H x L x W): 5mm x 3000mm x 5mm
- Weight: 0.1 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
- Compliant to fibre type B1.3 in IEC 6 793-2-5 & G652d
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Telecommunications networks
- Data centers and server rooms
- High-speed internet connections
- Long-distance and high-performance data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact during fire incidents
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SERVEREDGE 3m SCA-LC Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available for immediate purchase, ideal for telecommunications and data center applications.
