Trade Discount 17%

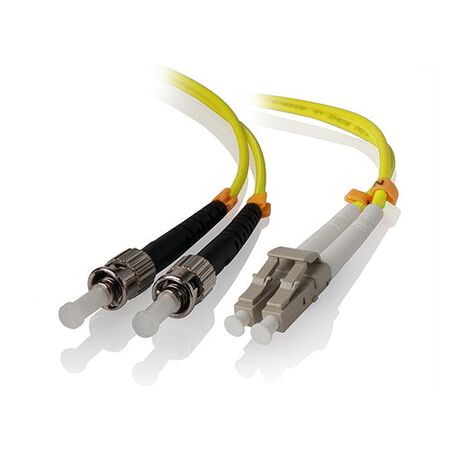

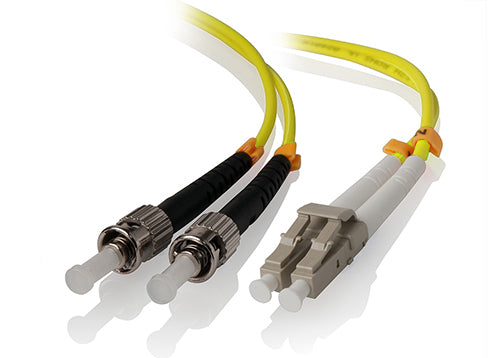

Single Mode Duplex LSZH Fibre Cable | 5m Length | 9/125 µm Core | 100% Optically Tested | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance telecommunications and data center applications. With a 5m length and a 9/125 µm core diameter, this cable features a Low Smoke Zero Halogen jacket, ensuring minimal toxic emissions in case of fire. It's 100% optically tested, making it a reliable choice for long-distance optical communication and high-speed internet infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 5m Length | 9/125 µm Core | 100% Optically Tested | by SERVEREDGE
Brand: SERVEREDGE
SKU: LCST-05-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, LCST Duplex Fibre Cable, OS2 Fibre Cable, LSZH Fibre Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 µm
- Fibre Standard: Compliant to fibre type B1.3 in IEC 60793-2-5 & G652d
- Jacket: Low Smoke Zero Halogen (LSZH)
- Length: 5 meters
- Optical Testing: 100% optically tested with test reports
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.1 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
Professional Installation Requirements
- Installation should be performed by qualified technicians familiar with fibre optic cable handling and termination to ensure optimal performance and safety.
Applications
- Telecommunications networks
- Data centers and server connections
- High-speed internet and broadband infrastructure
- Long-distance and high-performance optical communication
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions during fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE 5m LCST Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available for immediate purchase, ideal for telecommunications and data center applications.
