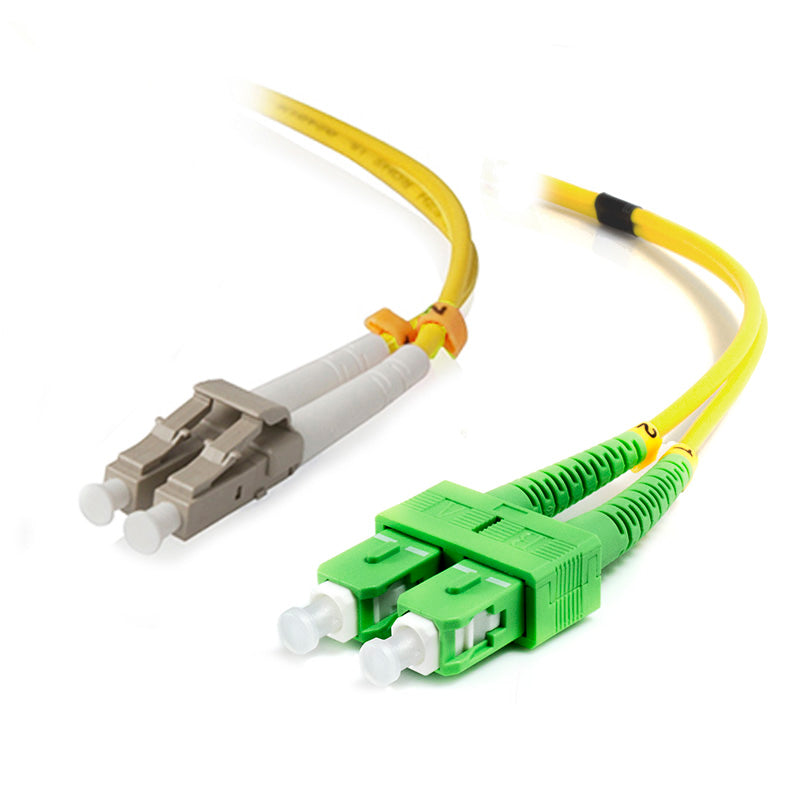

Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 1m Length | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance telecommunications and data center applications. With a 9/125 micron core diameter and a Low Smoke Zero Halogen jacket, it minimizes toxic emissions in case of fire. This 1m cable is 100% optically tested, ensuring reliable connectivity for long-distance optical communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 1m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: SCALC-01-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, OS2 Duplex Fibre Cable, LSZH Fibre Patch Cable, SCA-LC Fibre Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Fibre Type Compliance: B1.3 in IEC 60793-2-5 & G652d
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Length: 1 meter
- Optical Testing: 100% optically tested with test reports
- Dimensions (H x L x W): 5mm x 1000mm x 5mm
- Weight: 0.05 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Telecommunications networks
- Data centers and server connections
- High-speed internet and broadband infrastructure
- Long-distance and high-performance optical communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact during fire incidents
Warranty Information
Standard manufacturer warranty applies; please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE 1m SCA-LC Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available for immediate purchase, ideal for telecommunications and data center applications.
