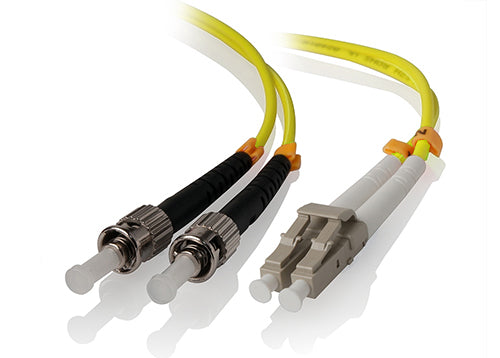

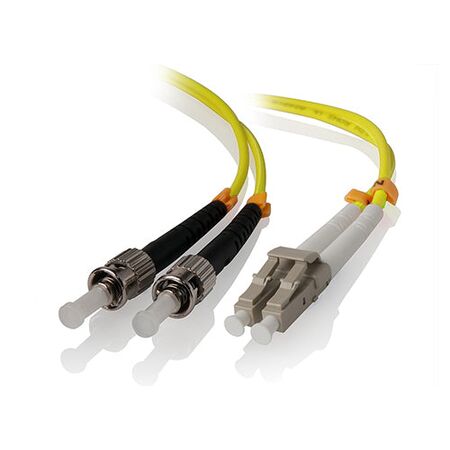

Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 0.5m Length | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance optical communication, featuring a 9/125 micron core diameter and a Low Smoke Zero Halogen jacket for minimal toxic emissions. Ideal for telecommunications networks and data centers, this cable is 100% optically tested, ensuring reliable connectivity and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 0.5m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: LCST-0.5-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, LCST Duplex Fibre Cable, OS2 Fibre Cable, LSZH Fibre Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Fibre Type Compliance: B1.3 in IEC 6 793-2-5 & G652d
- Jacket: Low Smoke Zero Halogen (LSZH)
- Length: 0.5 meters
- Optical Testing: 100% optically tested with test reports
- Dimensions (H x L x W): 3mm x 500mm x 5mm
- Weight: 0.05 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
- Compliant to fibre type B1.3 in IEC 6 793-2-5 & G652d
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Telecommunications networks
- Data centers and server rooms
- High-speed internet and broadband connections
- Long-distance and high-performance optical communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE 0.5m LCST Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available now for immediate purchase. Ideal for telecommunications, data centers, and high-speed network applications.
