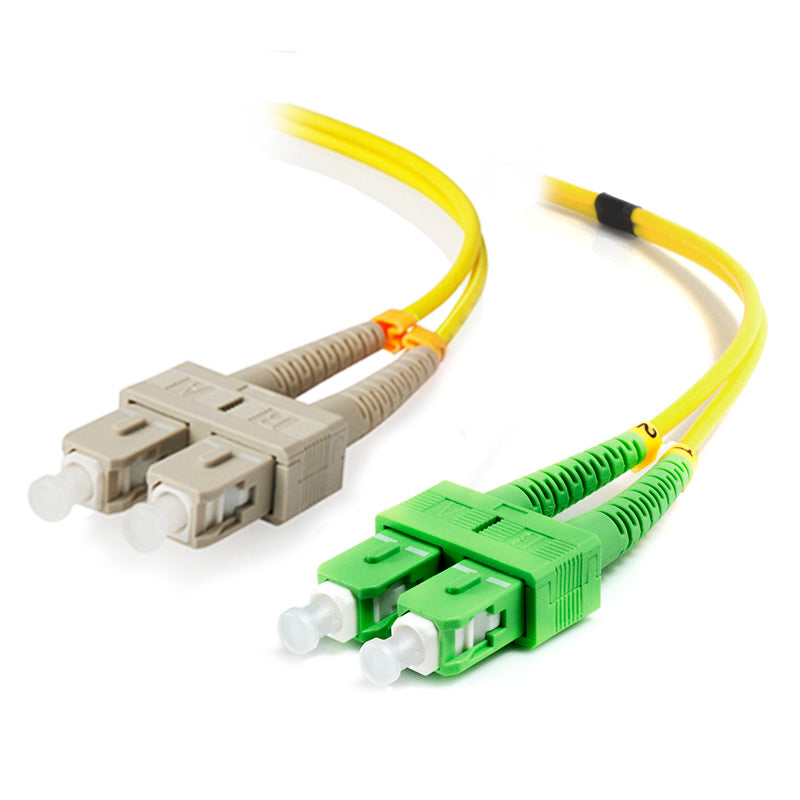

Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 1m Length | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-performance telecommunications and data center applications. With a core diameter of 9/125 microns and a Low Smoke Zero Halogen (LSZH) jacket, it minimizes toxic emissions in case of fire. This 1m cable is 100% optically tested, ensuring reliable connectivity for long-distance optical communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 100% Optically Tested | 1m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: SCASC-01-OS2
Alternatively Known As: Single Mode Duplex Fibre Optic Cable, OS2 Fibre Patch Cable, LSZH Fibre Cable, SCA to SC Fibre Cable
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Fibre Type Compliance: B1.3 in IEC 60793-2-5 & G652d
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Length: 1 meter
- Optical Testing: 100% optically tested with test reports
- Dimensions (H x L x W): 3mm x 1000mm x 5mm
- Weight: 0.1 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Available in various lengths from 0.5m to 20m
Professional Installation Requirements
- Installation by qualified technicians or professionals experienced in fibre optic cabling is recommended to ensure optimal performance and compliance.
Applications
- Telecommunications networks
- Data centers and server connections
- High-speed internet and broadband infrastructure
- Long-distance and high-performance optical communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact during fire incidents
Warranty Information
Standard manufacturer warranty applies. Please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE 1m SCA-SC Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available now for immediate purchase. Ideal for telecommunications, data centers, and high-speed network applications.
