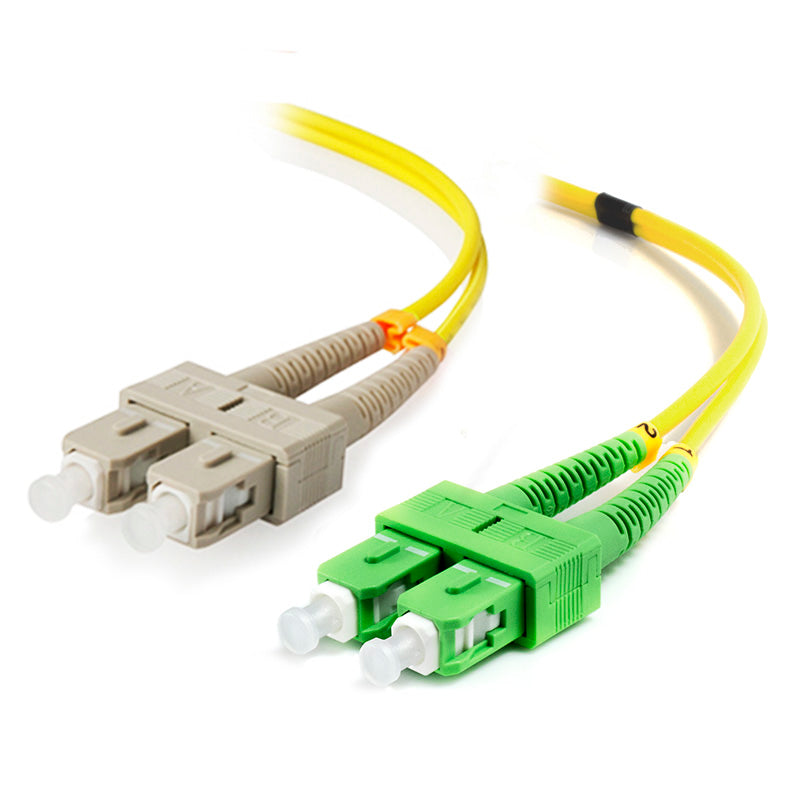

Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 3m Length | 100% Optically Tested | by SERVEREDGE
The Single Mode Duplex LSZH Fibre Cable is designed for high-speed data transmission, featuring a 9/125 micron core diameter and a Low Smoke Zero Halogen jacket for minimal toxic emissions. Ideal for telecommunications networks and data centers, this 3m cable is 100% optically tested, ensuring optimal performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode Duplex LSZH Fibre Cable | 9/125 Micron | 3m Length | 100% Optically Tested | by SERVEREDGE
Brand: SERVEREDGE
SKU: SCASC-03-OS2
Alternatively Known As: Single Mode Fibre Optic Cable, OS2 Duplex Fibre Cable, LSZH Fibre Cable, 09/125 Single Mode Fibre
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9/125 microns
- Jacket: Low Smoke Zero Halogen (LSZH)
- Standards Compliance: Fibre type B1.3 in IEC 6 793-2-5 & G652d
- Length: 3 meters
- Optically tested with test reports
- Dimensions (H x L x W): 3mm x 3000mm x 5mm
- Weight: 0.1 kg
Key Features
- Single Mode OS2 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with provided test reports
- Compliant to fibre type B1.3 in IEC 6 793-2-5 & G652d
Professional Installation Requirements
- Installation by qualified telecommunications or network professionals is recommended to ensure optimal performance and compliance with standards.
Applications
- Telecommunications networks
- Data centers and server rooms
- High-speed internet and broadband connections
- Long-distance and high-performance optical data transmission
Standards & Compliance
- Complies with AS/NZS 3080 for telecommunications cabling installation standards
Environmental Benefits
- Low Smoke Zero Halogen jacket reduces toxic emissions and environmental impact during fire incidents
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SERVEREDGE 3m SCA-SC Single Mode Duplex LSZH Fibre Cable 09/125 OS2 is available for immediate purchase, ideal for high-speed data transmission in telecommunications and data center environments.
