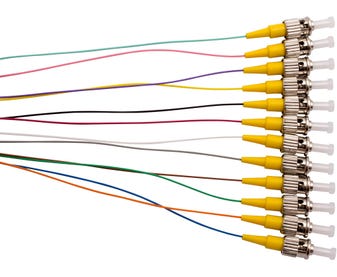

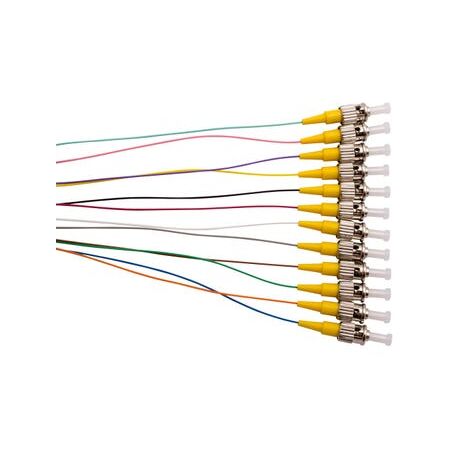

Single Mode Fibre Optic Pigtails 12 Fibres ST | 9um Core | LSZH Tight Buffer by Cabac
MSS Fibre SM 9um 12-Fibre ST 900um Pigtails - 12 Pack by Cabac offers high-performance OS2 fibre optic pigtails with LSZH tight buffer, ideal for fibre optic network installations and data communications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SM 9um 12-Fibre ST 900um Pigtails - 12 Pack
Brand: Cabac
SKU: PST2M/900-SMC12
Alternatively Known As: Single Mode Fibre Optic Pigtails, 12 Fibre ST Pigtails, OS2 Fibre Pigtails, LSZH Fibre Pigtails
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9 microns
- Fibre Count: 12 fibres
- Buffer Diameter: 900 microns
- Connector Type: ST
- Standards Compliance: ITU-T G652.D, TIA/EIA 492 CAAB
- Fibre Colour Coding: IEC 60304, TIA-598
- Material Compliance: REACH, RoHS, SvHC
- Cable Jacket: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.1 kg
Key Features
- 6 or 12 Pack UPC Connector Pigtails packaged and labelled for protection, performance data, and traceability
- 900um Low Smoke Zero Halogen (LSZH) tight buffer
- OS2 fibre conforms to ITU-T G652.D, TIA/EIA 492 CAAB
- Individual fibres coloured as per IEC 60304, TIA-598
- REACH, RoHS and SvHC materials compliant
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with industry standards.
Applications
- Fibre optic network installations
- Telecommunications
- Data communications infrastructure
- FTTx (Fiber to the x) deployments
- Optical fibre patching and splicing
Standards & Compliance
- AS/NZS 3080 – Fibre Optic Cabling and Components
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Compliant with REACH, RoHS and SvHC standards ensuring environmentally safe materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre SM 9um 12-Fibre ST 900um Pigtails - 12 Pack by Cabac is available now for immediate purchase. Ideal for fibre optic network and data communication applications.
