Trade Discount 17%

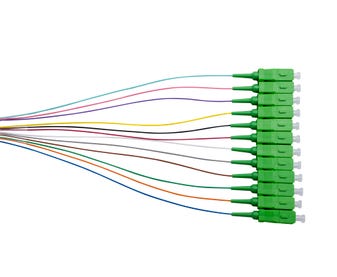

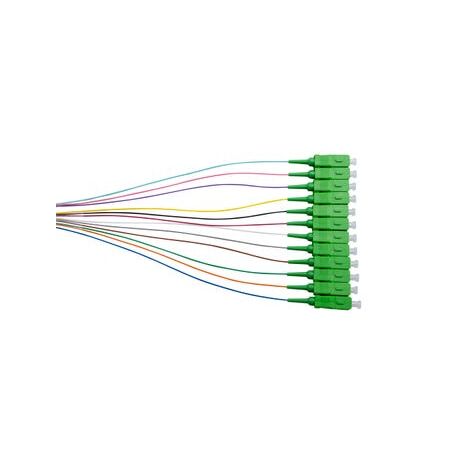

Single Mode Fibre Optic Pigtails | 12 Pack APC Connectors | 900um LSZH | 9um Core by Cabac
MSS Fibre SM 9um 12-Fibre SCA 900um Pigtails - 12 Pack by Cabac offers high-performance, compliant fibre optic pigtails ideal for data communications and fibre networking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SM 9um 12-Fibre SCA 900um Pigtails - 12 Pack
Brand: Cabac
SKU: PSCA2M/900-SMC12
Alternatively Known As: Single Mode Fibre Optic Pigtails, 12 Fibre SCA Pigtails, LSZH Fibre Pigtails, OS2 Fibre Pigtails
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9um
- Fibre Count: 12
- Buffer Diameter: 900um
- Connector Type: SCA APC
- Standards Compliance: ITU-T G652.D, TIA/EIA 492 CAAB
- Fibre Colour Coding: IEC 60304, TIA-598
- Material Compliance: REACH, RoHS, SvHC
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.1 kg
Key Features
- 12 Pack APC Connector Pigtails
- 900um Low Smoke Zero Halogen (LSZH) tight buffer
- OS2 fibre conforms to ITU-T G652.D, TIA/EIA 492 CAAB
- Individual fibres coloured as per IEC 60304, TIA-598
- REACH, RoHS and SvHC materials compliant
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with industry standards.
Applications
- Fibre networking installations
- Data communications infrastructure
- Telecommunications and data centers
- Optical fibre splicing and connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Compliant with REACH, RoHS and SvHC ensuring environmentally safe materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre SM 9um 12-Fibre SCA 900um Pigtails - 12 Pack by Cabac is available now for immediate purchase. Ideal for fibre networking and data communications applications.
