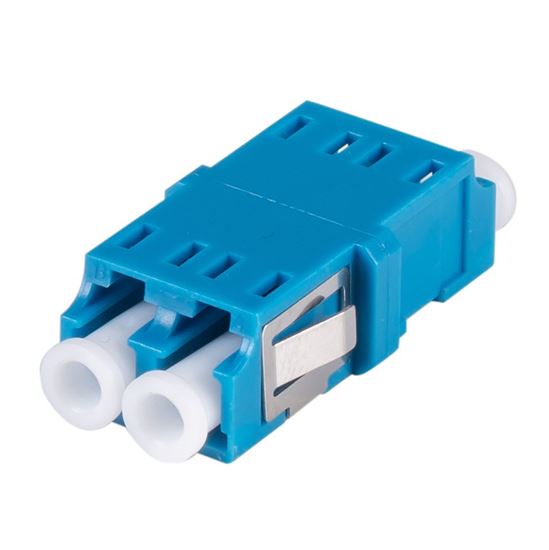

Single-Mode Flangeless LC/LC Duplex Adapter | Low Insertion Loss | High Return Loss | Blue Housing | @Pack by Repelec

BRAND: Repelec
SKU: DYNA-FXLCLC-DSM
$8.70 List price: $10.50
+ −
30 Days Return Electricians Unlock Trade Access
The Single-Mode Flangeless LC/LC Duplex Adapter is designed for high-speed data transmission, featuring a compact flangeless design and a distinctive blue housing for easy identification. Ideal for telecommunications networks and data centers, this adapter ensures low insertion loss and high return loss, making it perfect for high-density patch panels and professional networking environments.

Product Name/Title: Single-Mode Flangeless LC/LC Duplex Adapter | Low Insertion Loss | High Return Loss | Blue Housing | @Pack by Repelec

Brand: Repelec

SKU: DYNA-FXLCLC-DSM

Alternatively Known As: LC to LC Duplex Adapter, LC Fibre Optic Coupler, Single-Mode LC Adapter, Blue LC Duplex Adapter, Fibre Optic LC Connector

Technical Specifications
  • Type: LC/LC Duplex Adapter
  • Mode: Single-mode
  • Housing: Flangeless, Blue
  • Insertion Loss: ≤ 0.2dB
  • Return Loss: ≥ 50dB
  • Material: Zirconia ceramic sleeve
  • Compatibility: Standard LC connectors
  • Operating Temperature: -40°C to +75°C
  • Dimensions (H x L x W): 9mm x 25mm x 9mm
  • Weight: 0.1 kg
Key Features
  • Single-mode fibre optic adapter for high-speed data transmission
  • Flangeless LC/LC duplex design for compact installations
  • Blue housing for easy single-mode identification
  • Low insertion loss and high return loss
  • Precision alignment sleeves for reliable performance
  • Suitable for high-density patch panels and enclosures
Professional Installation Requirements
  • Installation by a qualified technician is recommended to ensure optimal fibre optic performance and network reliability.
Applications
  • Telecommunications networks
  • Data centers
  • Enterprise networking
  • FTTx (Fiber to the x) installations
  • LAN and WAN environments
  • Test equipment connections
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enables efficient, high-speed data transmission reducing the need for copper cabling
  • Supports network upgrades that lower overall energy consumption
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Repelec Single-Mode Flangeless LC/LC Duplex Fibre Optic Adapter in blue is available for immediate purchase. Ideal for high-density fibre optic patch panels and professional networking environments.
