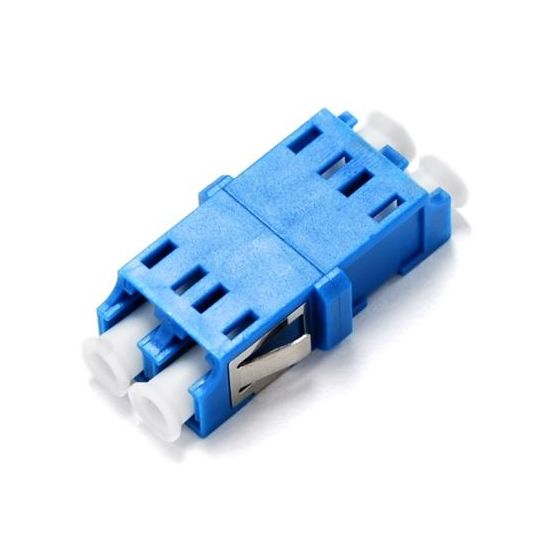

Single Mode LC/LC Duplex Fibre Adaptor | Ceramic Sleeve | Low Insertion Loss | Blue Housing | @Pack by Repelec
The Single Mode LC/LC Duplex Fibre Adaptor features a high-precision ceramic sleeve and low insertion loss, making it ideal for telecommunications and data centre applications. With a durable blue housing for easy identification, this adaptor ensures optimal fibre alignment and long-term reliability, perfect for enterprise networking and FTTx installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Mode LC/LC Duplex Fibre Adaptor | Ceramic Sleeve | Low Insertion Loss | Blue Housing | @Pack by Repelec
Brand: Repelec
SKU: DYNA-FIBLCLC-DSM
Alternatively Known As: LC to LC Duplex Fibre Adapter, LC/LC Single Mode Adapter, LC Duplex Ceramic Adapter, Blue LC Fibre Coupler
Technical Specifications
- Type: LC/LC Duplex Fibre Adaptor
- Mode: Single Mode
- Sleeve Material: Ceramic
- Housing Colour: Blue
- Insertion Loss: ≤0.2dB
- Return Loss: ≥50dB
- Durability: >1000 mating cycles
- Operating Temperature: -40°C to +75°C
- RoHS compliant
- Dimensions (H x L x W): 9mm x 25mm x 9mm
- Weight: 0.1 kg
Key Features
- Single mode LC/LC duplex fibre adaptor
- High-precision ceramic sleeve for optimal alignment
- Low insertion loss and high return loss
- Blue housing for single mode identification
- Durable construction for long-term reliability
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure optimal fibre alignment and network performance.
Applications
- Telecommunications networks
- Data centres
- Enterprise networking
- FTTx (Fibre to the x) installations
- LAN and WAN environments
- Test equipment connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables high-speed, energy-efficient data transmission reducing the need for copper cabling.
- Supports network upgrades that lower overall power consumption.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec Fibre Adaptor Single Mode LC/LC Duplex Ceramic Blue is available for immediate purchase. Ideal for telecommunications, data centres, and enterprise networking applications.
